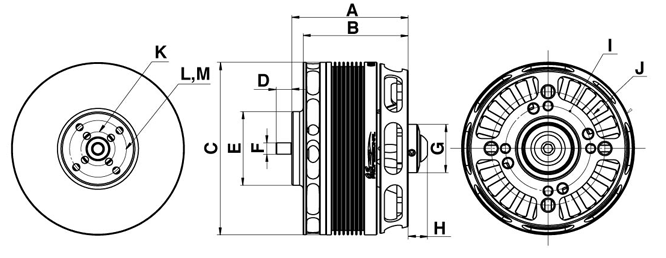

寸法(mm) | |
---|---|
A | 44.0 |
B | 41.0 |
C | 60.0 |
D | 5.5 |
E | 26.0 |
F | 4.0 |
G | 15.0 |
H | 8.0 |
I | Φ30/4-(M3,M4) |
J | Φ40/4-M5 |
K | Φ12/4-M3 |
L | Φ20/4-M3 |
M | - |
項目 | Item | 単位:unit | |
---|---|---|---|
極 数 | Poles | 22 | |
重 量(※1) | Weight | g | 345(395) |
リード線 長さ | Wire Length | mm | 500 |
リード線 太さ | Wire Gauge | 15AWG | |
コネクタ凸 | Male Connector | mm | 4.0 |
定格電圧 | Rated Voltage | (V/20℃) | 22.2(6S Lipo) |
定格電力 | Rated Power | (W/20℃) | 510 |
定格電流(※2) | Rated current | (A/20℃) | 23 |
最大電力 | Maximum Power | (W/180sec) | 950 |
最大電流(※3) | Maximum current | (A/180sec) | 43 |
無負荷電流 | No-load current | (A/@10V) | 1.2 |
相間抵抗 | Phase resistance | mΩ | 45 |
ステータ | Slots | 24 | |
電圧範囲 | Voltage Range | V | 14.8(4s Lipo)-34.8(8S LiHV) |
KV値 | KV | rpm/V | 330 |
※1 重量(リード線&コネクタ含む)/Weight (with wires & connector)
※2/※3モーターは運転中の性能を維持するために、プロペラ後流等の冷却用の空気(風速5m/s以上、環境温度20℃)を必要とします。
モーターの冷却用の孔を塞いだり、モーターへのプロペラ後流を遮断する構造にすると、性能を維持出来なくなることが有ります。
※2/※3
To maintain its full performance during operation, the motor needs to be cooled down by air, such as propeller slipstream. The wind speed for cooling should be more than 5m/s at 20℃ environmental temperature. Covering the air ducts of the motor and disturbing the propeller slipstream may cause malfunction of the motor due to overheating.
