0RF-200 (dust proof)

Open type regulate rectifier



The regulate rectifier stabilizes the output electricity of OGA-100/200 and converts to DC voltage. Conventional Shunt regulate rectifier continuously emits surplus electricity converting to heat, which is nothing but waste.  Permanent magnet generators generate electricity in proportion to engine rpm, so Shunt regulate rectifier is concerned to break down during continual high rpm operation.  To overcome the issue, we have developed open type regulate rectifier corresponding to wide range input voltage.  The new regulate rectifier regulates the output electricity according to input voltage and the output voltage coming from the DC converter. (Patent pending)  The generator supplies only the needed electricity constantly over a wide rpm range, so mechanical friction loss is reduced improving fuel mileage with good response.

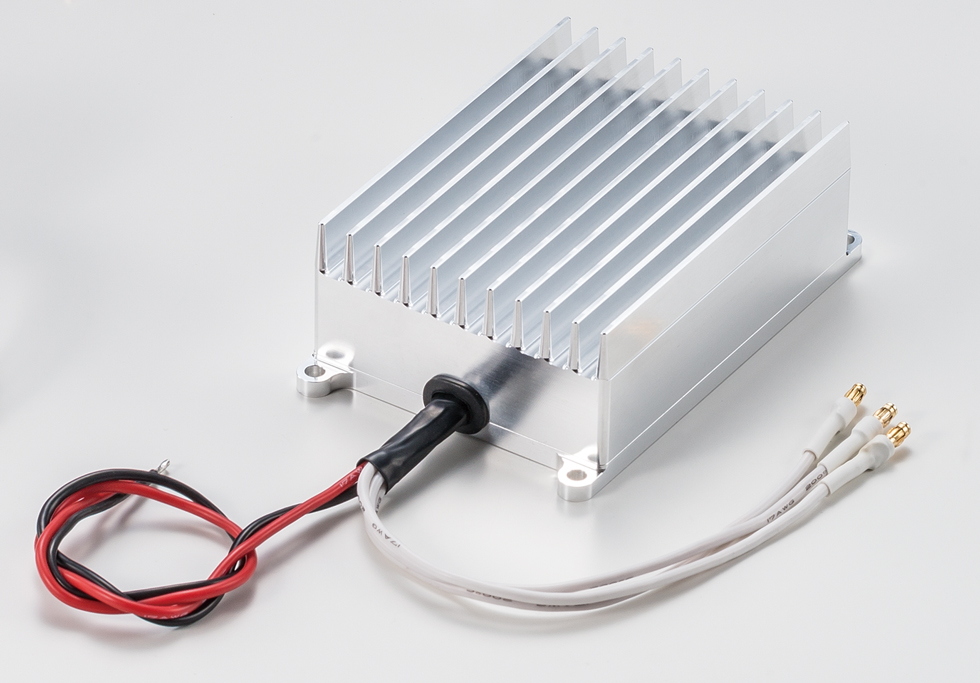

※Photo Shown Prototype
