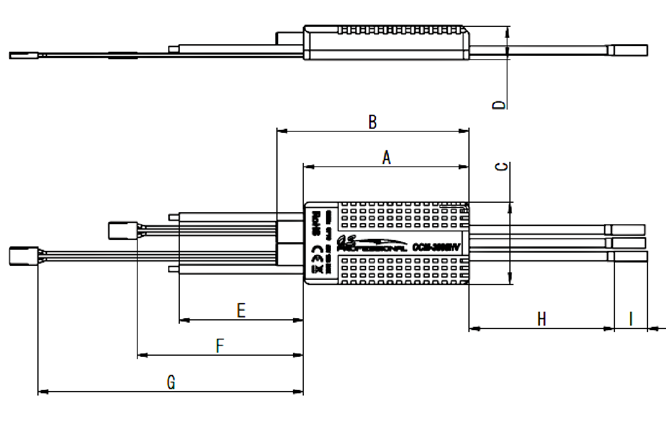

寸法(Dimension) | (mm) |
---|---|
A | 56.0 |
B | 65.0 |
C | 26.0 |
D | 13.5 |
E | 85±5 |
F | 120±10 |
G | 240±10 |
H | 145±10 |
I | Φ3.5/14凹connector |
項目 | Item | 単位:Unit | |
---|---|---|---|
重量 | Weight | g | 50±5 |
入力信号周期 | Refresh Rate | Hz | 50-600 |
入力電圧範囲 | Voltage Range | V | 7.4-34.8 |
(※)最大入力電流 | Maximum Current | A(180Sec.20°) | 35 |
(※)定格入力電流 | Rated Input Current | A(20°C) | 15 |
BEC | 無/None | ||
進角範囲 | Advance Timing | 自動/Auto | |
PWM周波数 | PWM Rate | 自動/Auto | |
電源リード(耐熱200℃) | Power Leads(Heat-resistant 200℃) | AWG | 14 |
モーターリード(耐熱 200°C) | Motor Leads(Heat-resistant 200℃) | AWG | 15 |
入力信号リード (白-赤-黒) |
Signal Lead (White-Red-Black) |
AWG | 22 |
パラメーターリード (橙-赤-茶) |
Programming Lead (Orange-Red-Brown) |
AWG | 22 |
※ESCは運転中の性能を維持するために、プロペラ後流等の冷却用の空気(風速5m/s以上、環境温度20℃)を必要とします。 ESCを冷却流が当たらない場所に設置すると、性能を維持出来なくなることが有ります。
※:During ESC operation, in order to maintain a maximum current and rated current, the entire heat sink, the cooling air (wind of propeller etc.),wind speed (5 m/s or higher) is required.If the environmental temperature is 20℃.The maximum performance limit of ESC greatly changes depending on environmental factors such as air temperature and humidity.
