EM-100 SPECIFICATIONS
| Item | unit | |
|---|---|---|
| Dimensions | mm | W70×D64×H20.7 |
| Weight | g | 73 |
| Supply Voltage | V | DC 10～18(Li-po3cell〜Li-HV4cell） |
| Output voltage | V | 6 |
| Output current | A | Ave 2 / Max 3(30sec) |
| Output voltage | V | 7.4 |
| Output current | A | Ave 8 / Max 12(30sec) |
| Communication Interface | RS485(1Mbps) or CAN | |
| Operating Environment | -20℃～+70℃ |
| Sensor type |
range of detection |
resolution |
remark |
|---|---|---|---|
| Altitude sensor | -700m～5,500m | ±0.1m | built-in |
| Atmospheric pressure sensor | 260hPa～1,260hPa | ±0.1hPa | built-in |

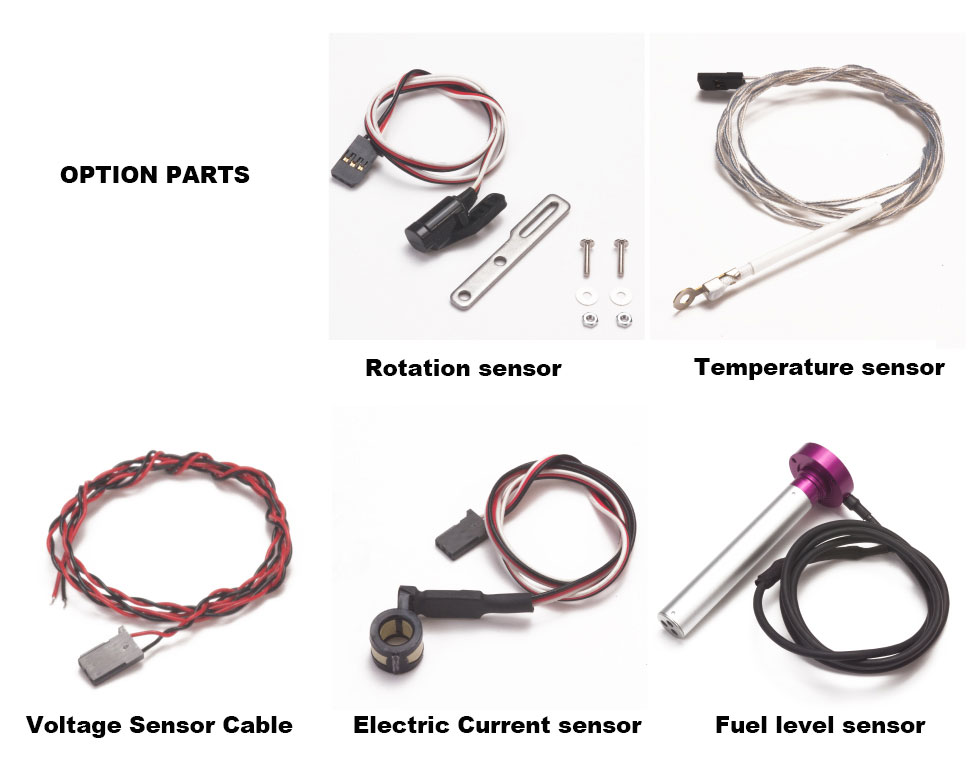

| Rotation sensor | 0rpm～50,000rpm （2ch） | ±0.1Hz(±6rpm) | optional |
| Temperature sensor | -20℃～300℃（2ch） | ±1℃ | optional |
| Voltage sensor | 0V～100V （2ch） | ±0.1V | optional |
| Electric Current sensor | 0A～25A （2ch） | ±1A | optional |
| Fuel level sensor | ※0mm～100mm | ±1% | optional |
