O.S.SPEED B21 ADAM DRAKE EDITION2

O.S.SPEED B21 ADAM DRAKE EDITION2 1 2 2-1 3 4 4-1 4-2 4-3 4-4 5 6 6-1 7 8 9 10 11 12 2.6/7 2.6/18 3/18

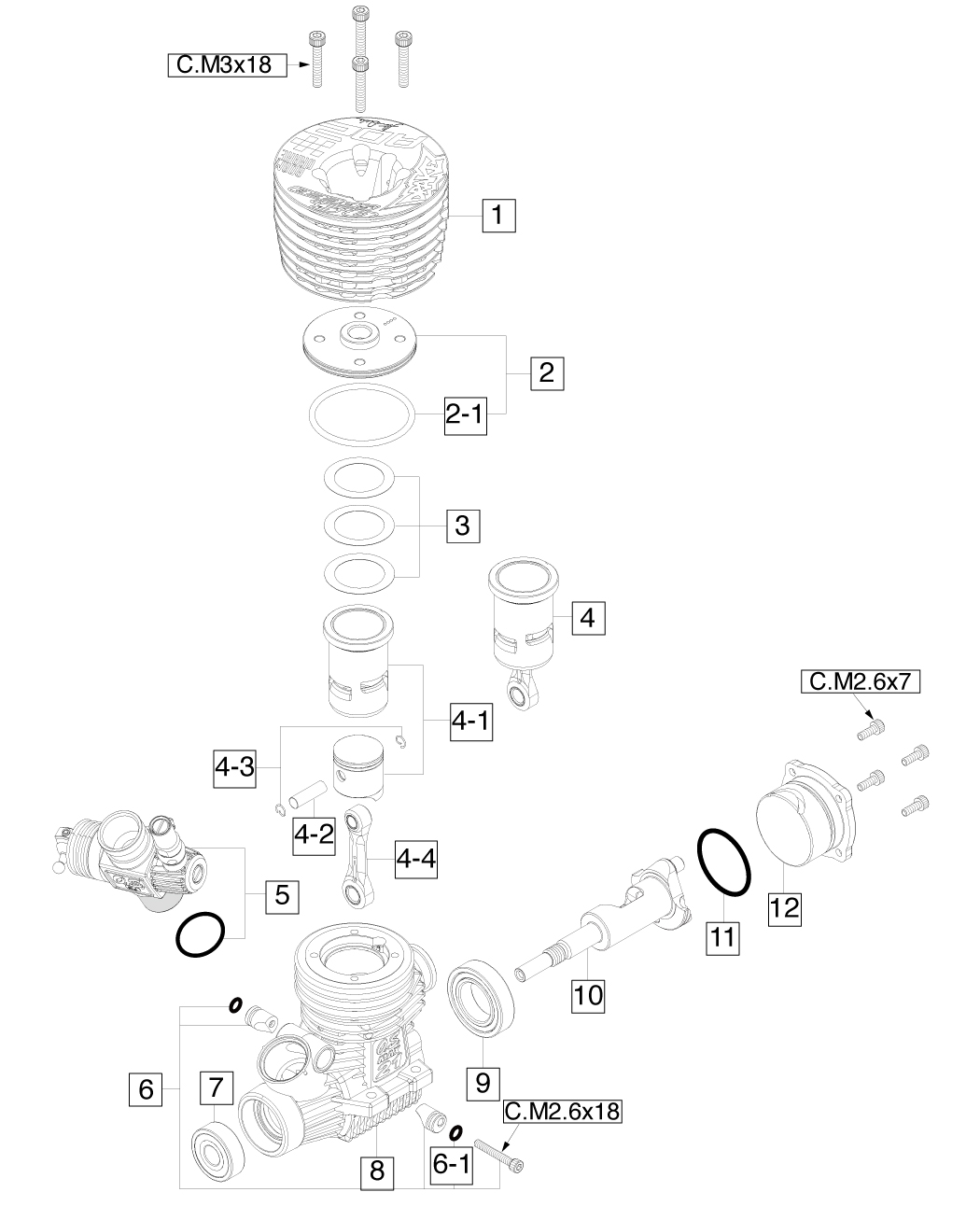

O.S.SPEED B21 ADAM DRAKE EDITION2 Exploded view・Manual


O.S.Official WEB
O.S.Official WEB

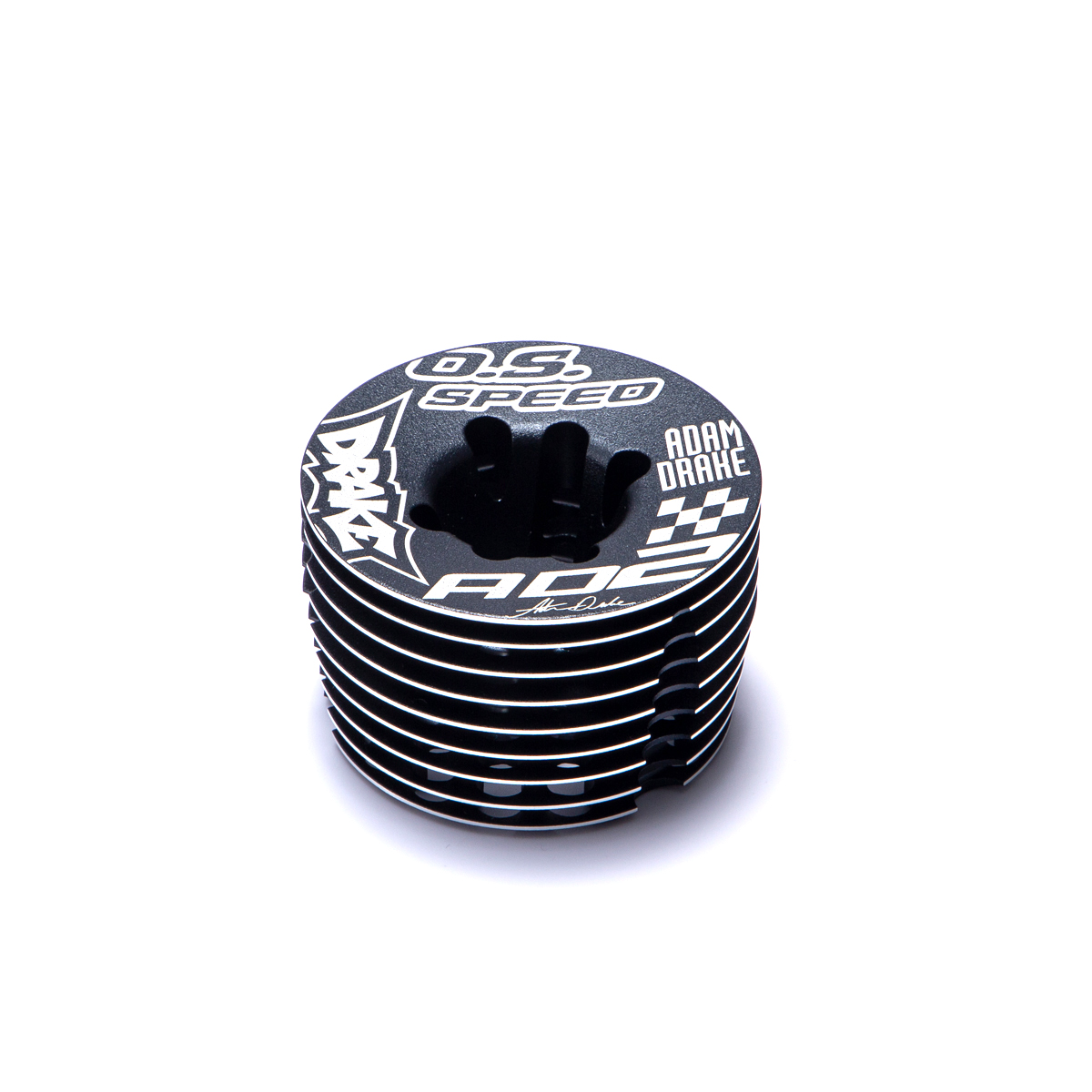

(1)Outer Head
2CH04000(Code)

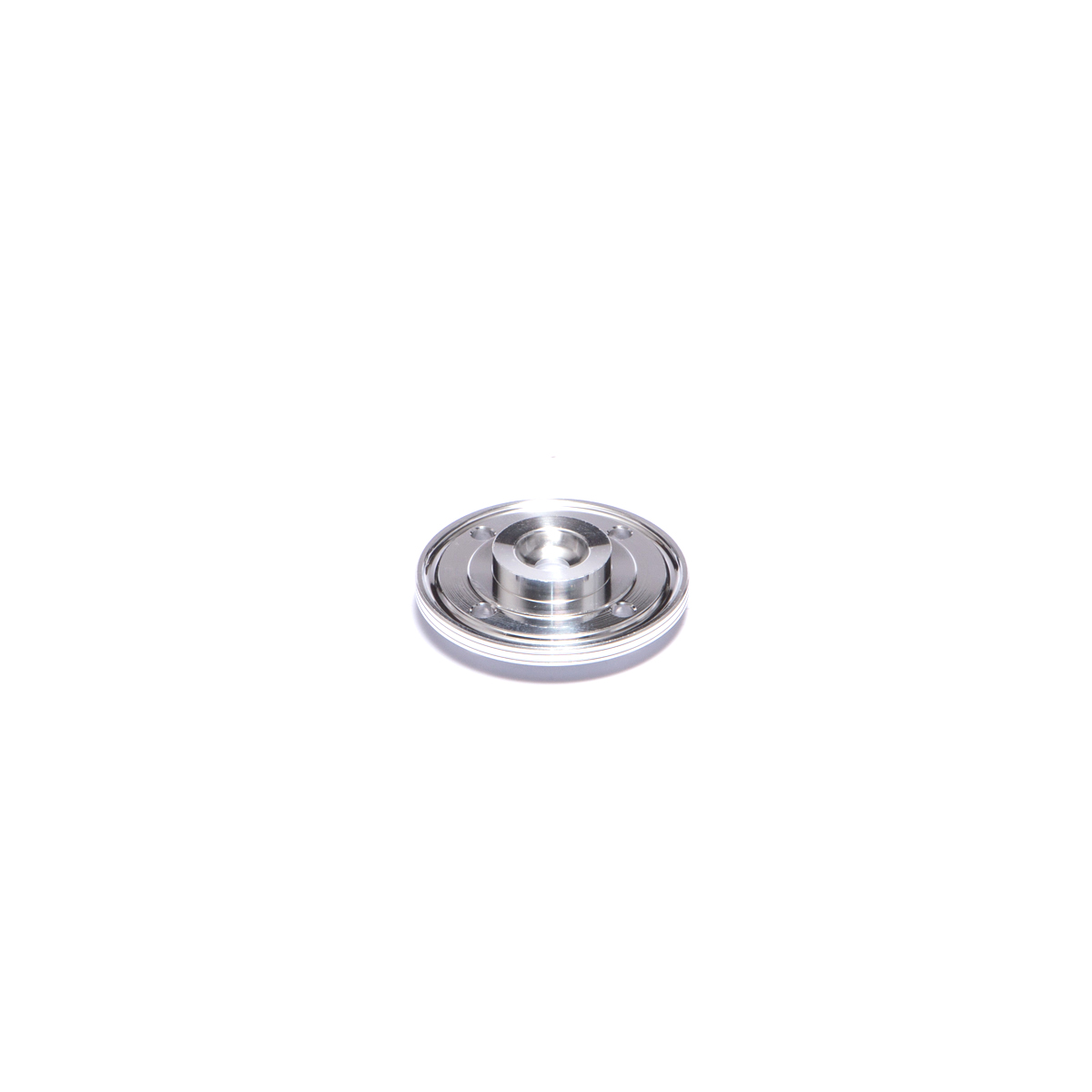

(2)Inner Head
2CH04100(Code)

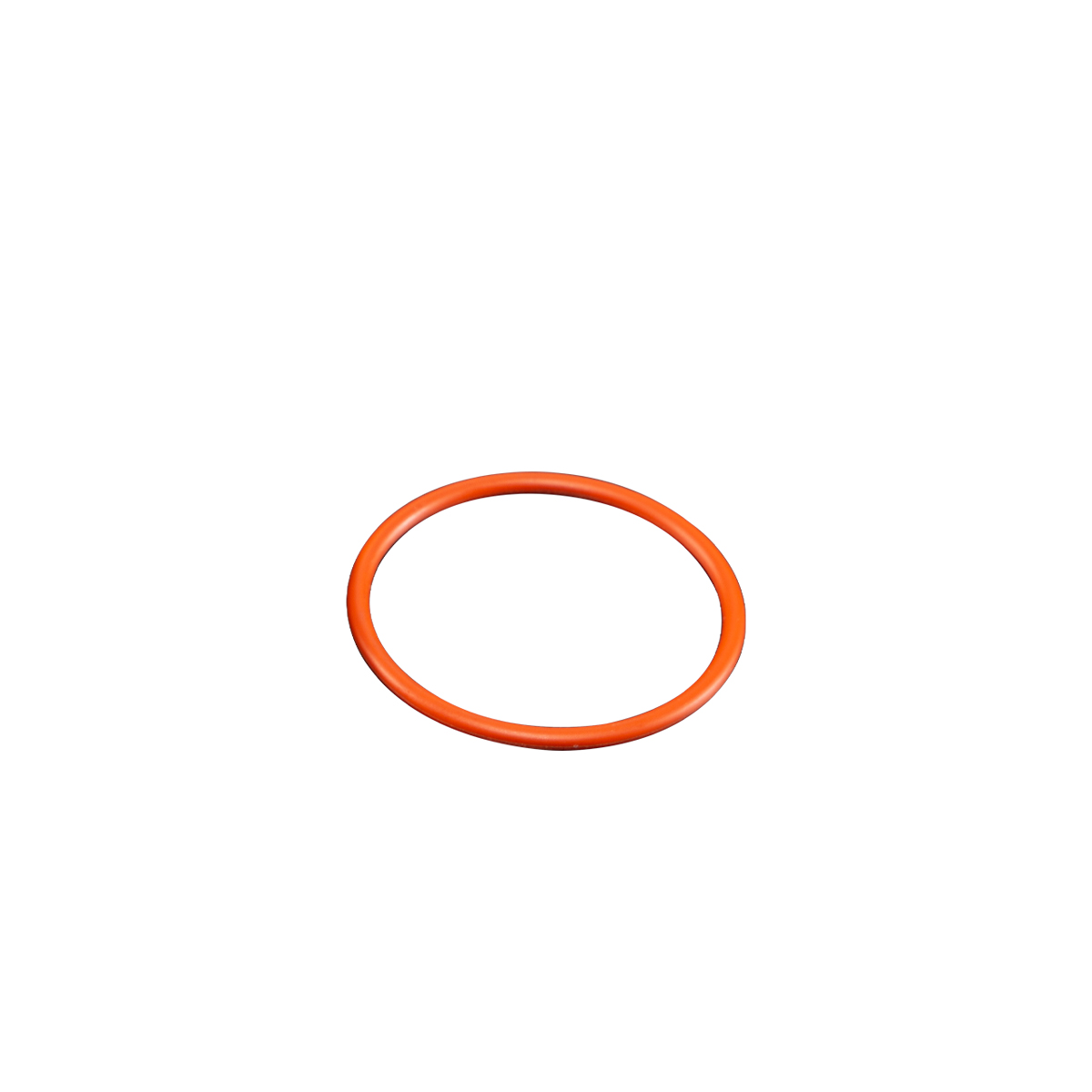

(2-1)Inner Head "O" Ring
2BN04180(Code)

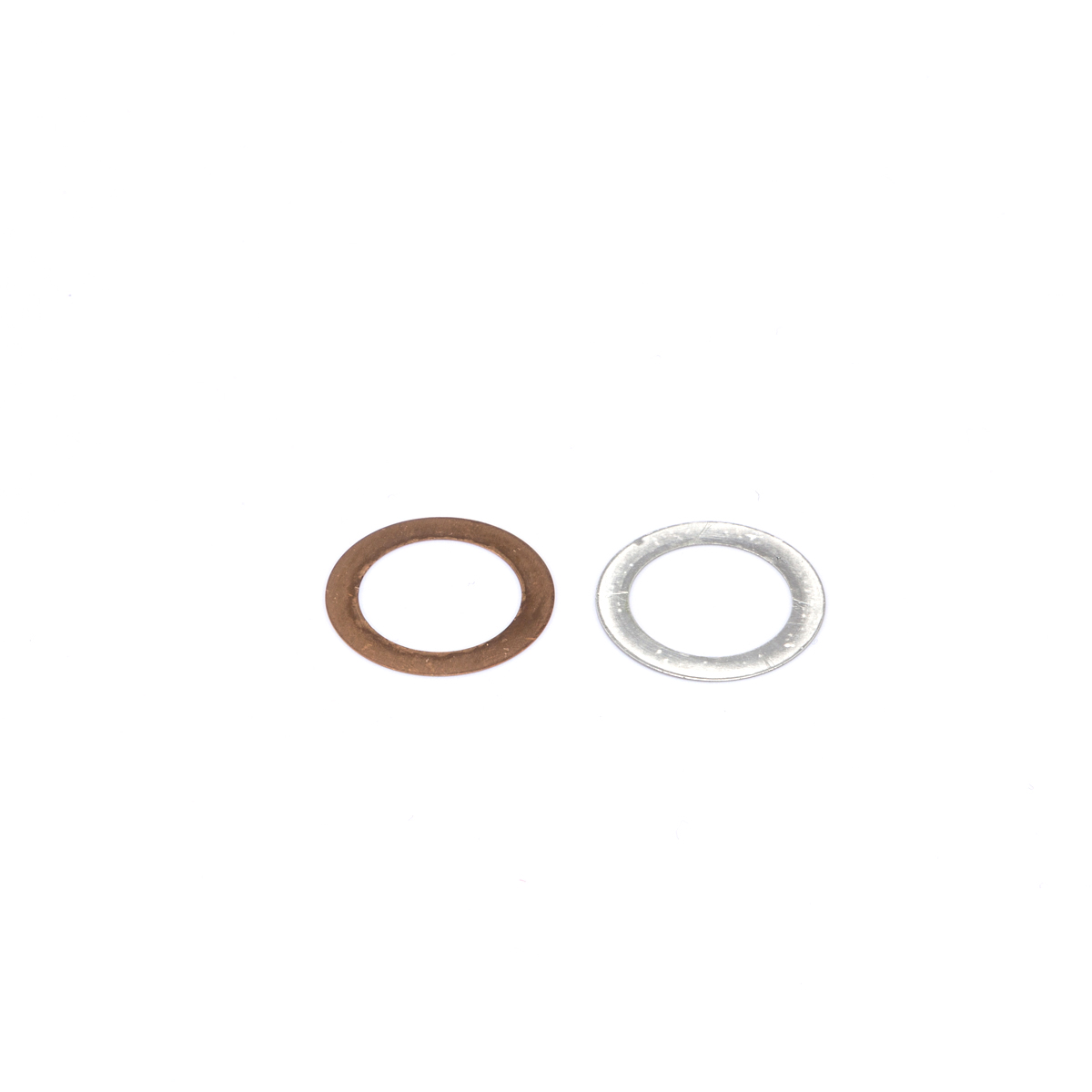

(3)Head Gasket
2A204160(Code)

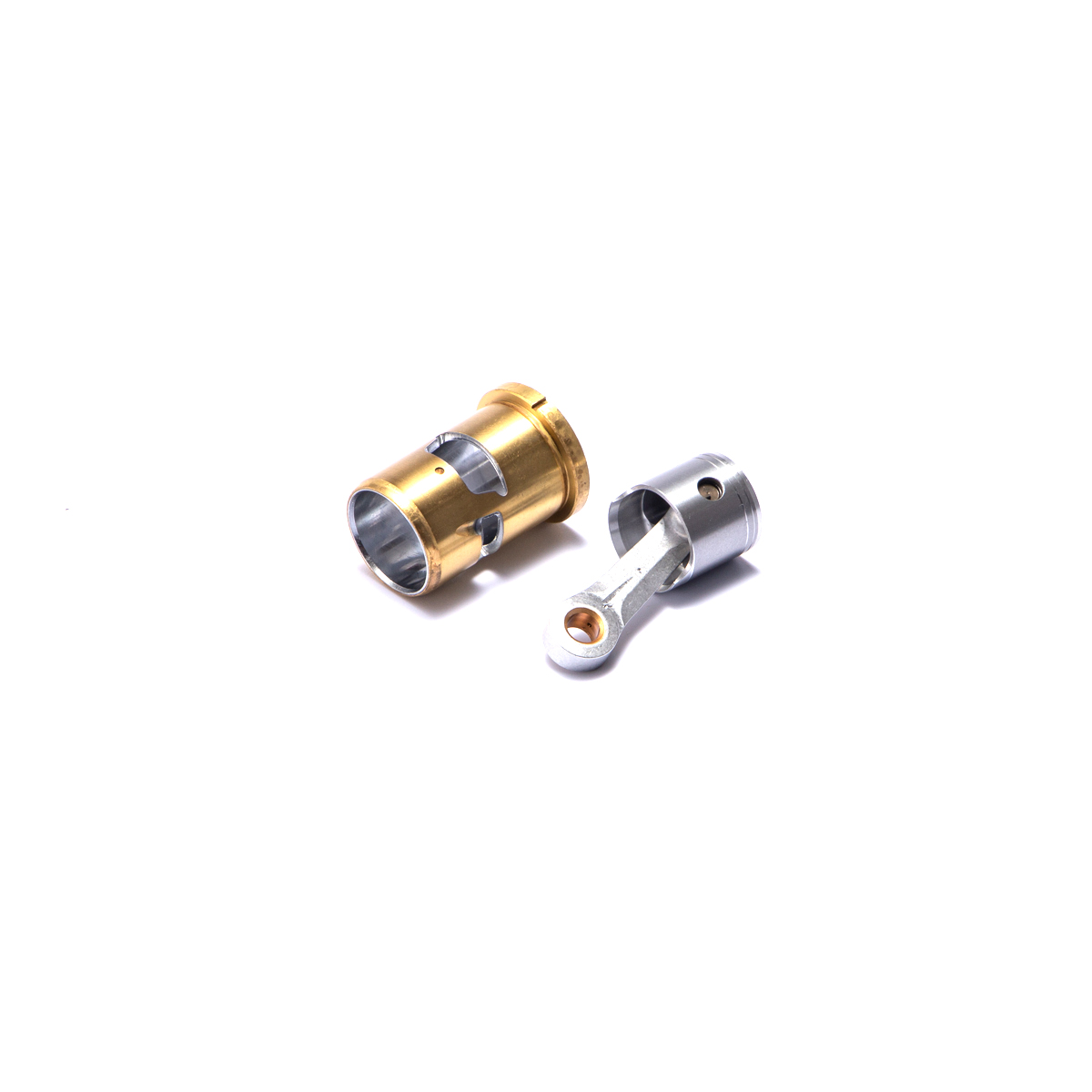

(4)Built-Up Parts Set
2A203013(Code)

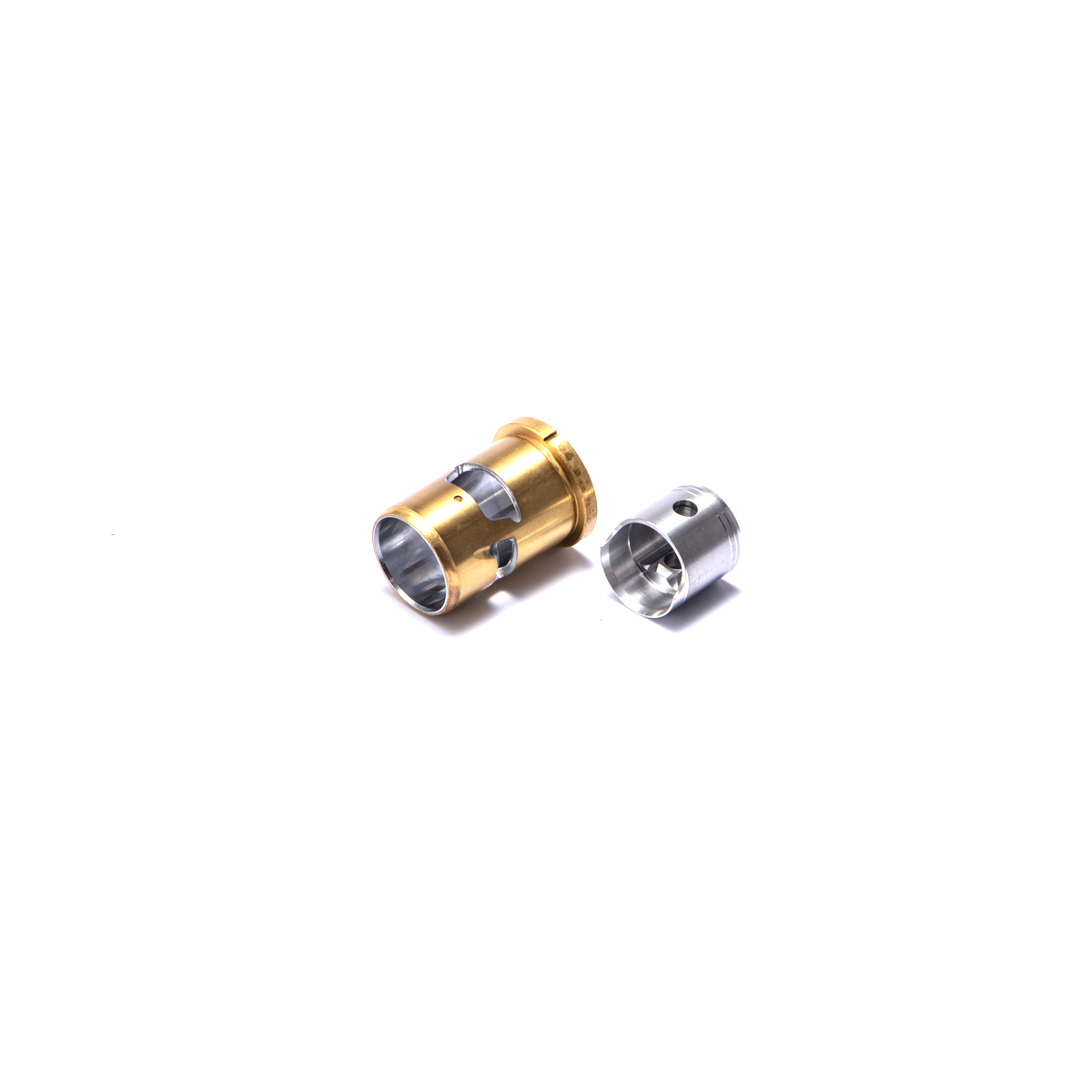

(4-1)Cylinder & Piston Assembly
2A203003(Code)
(4-2)Piston Pin
22016000(Code)

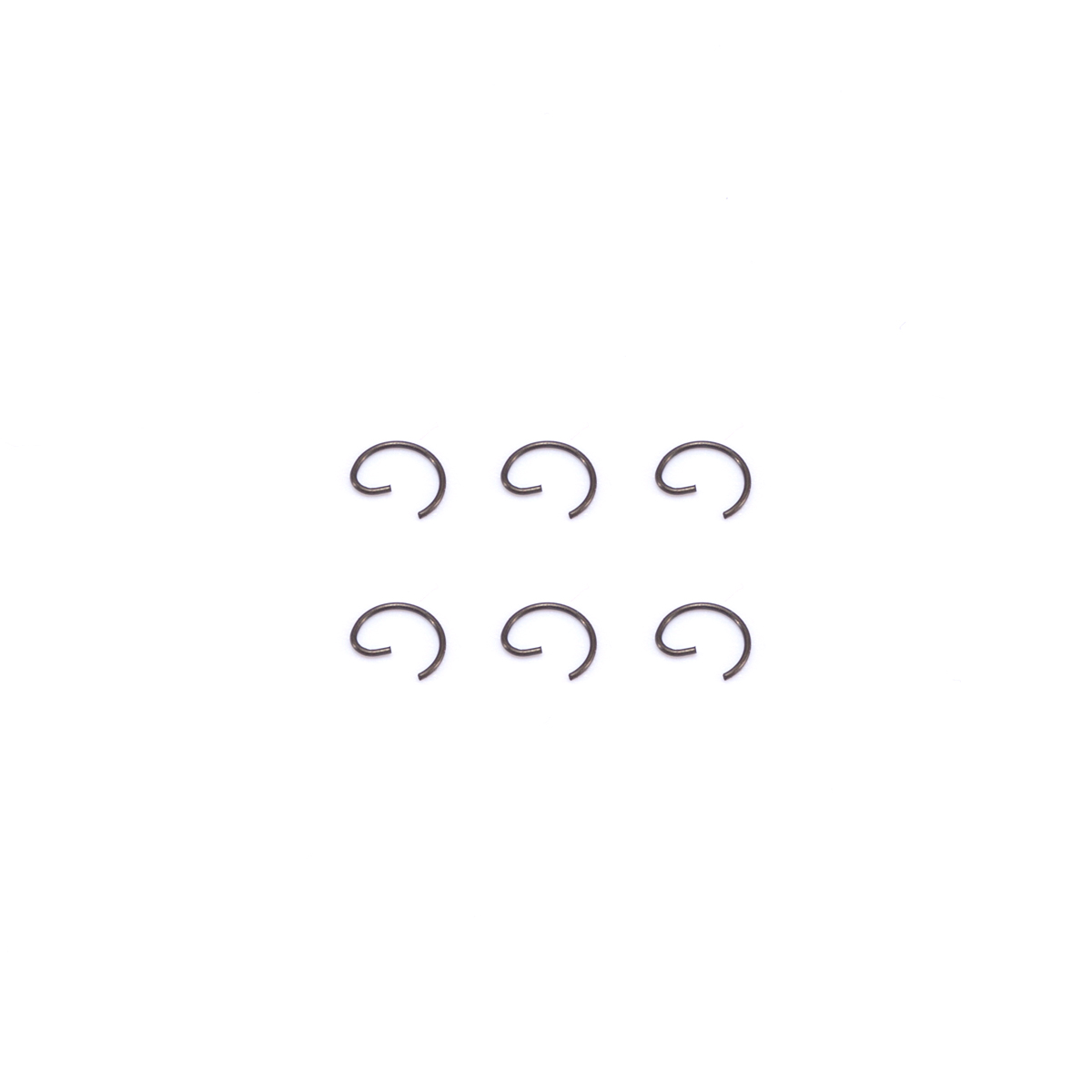

(4-3)Piston Pin Retainer
2AP17000(Code)

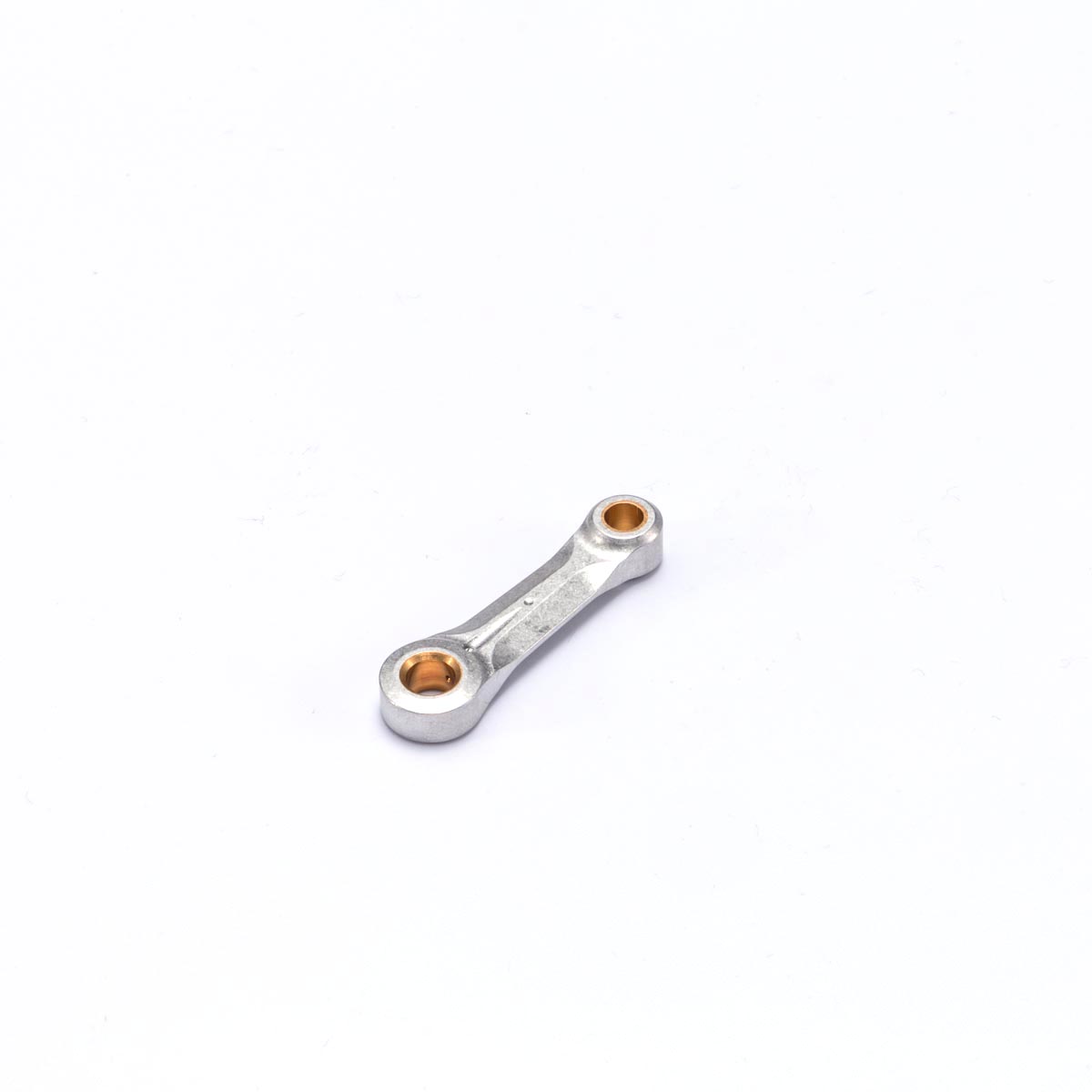

(4-4)Connecting Rod
22425003(Code)

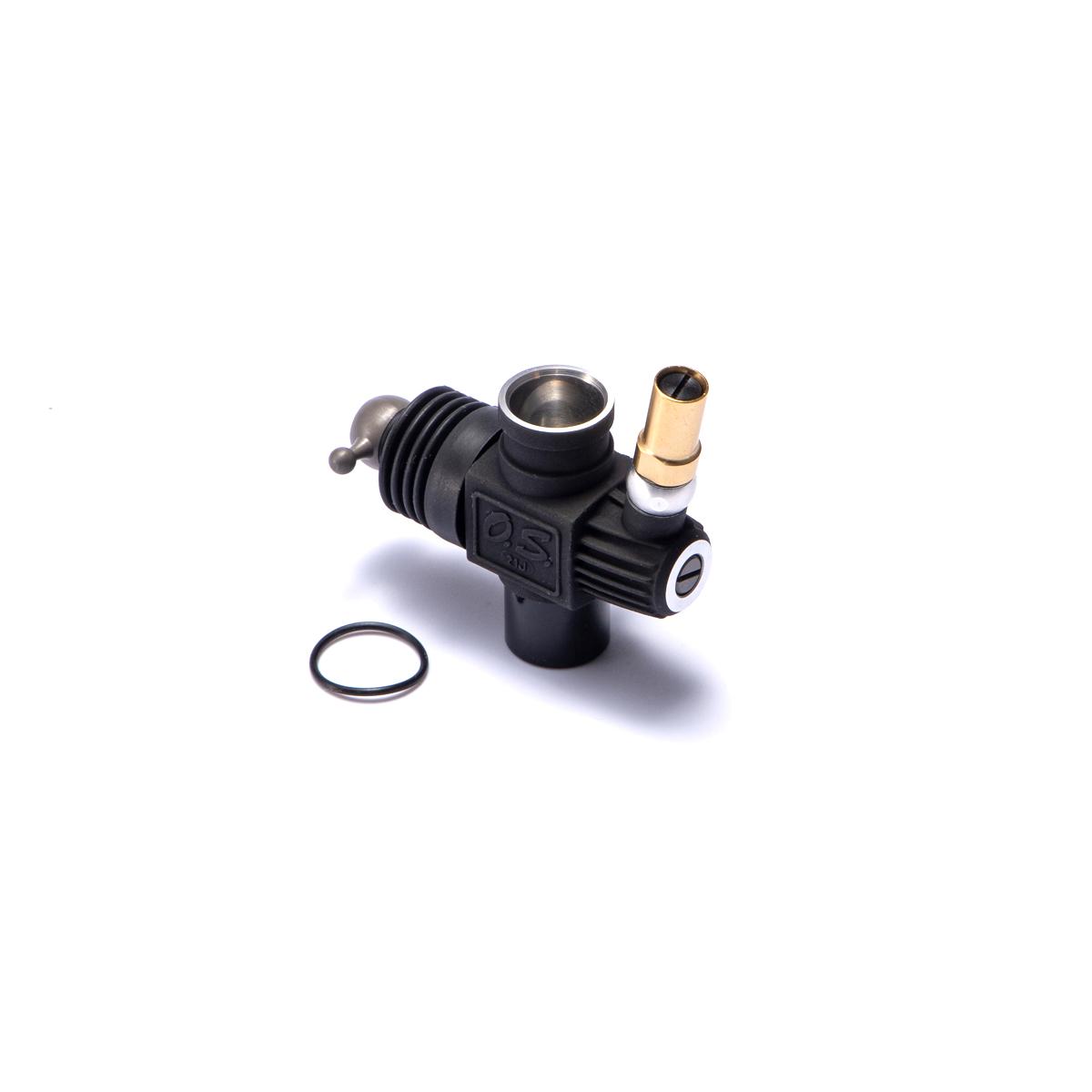

(5)Carburetor Complete
2CH81000(Code)

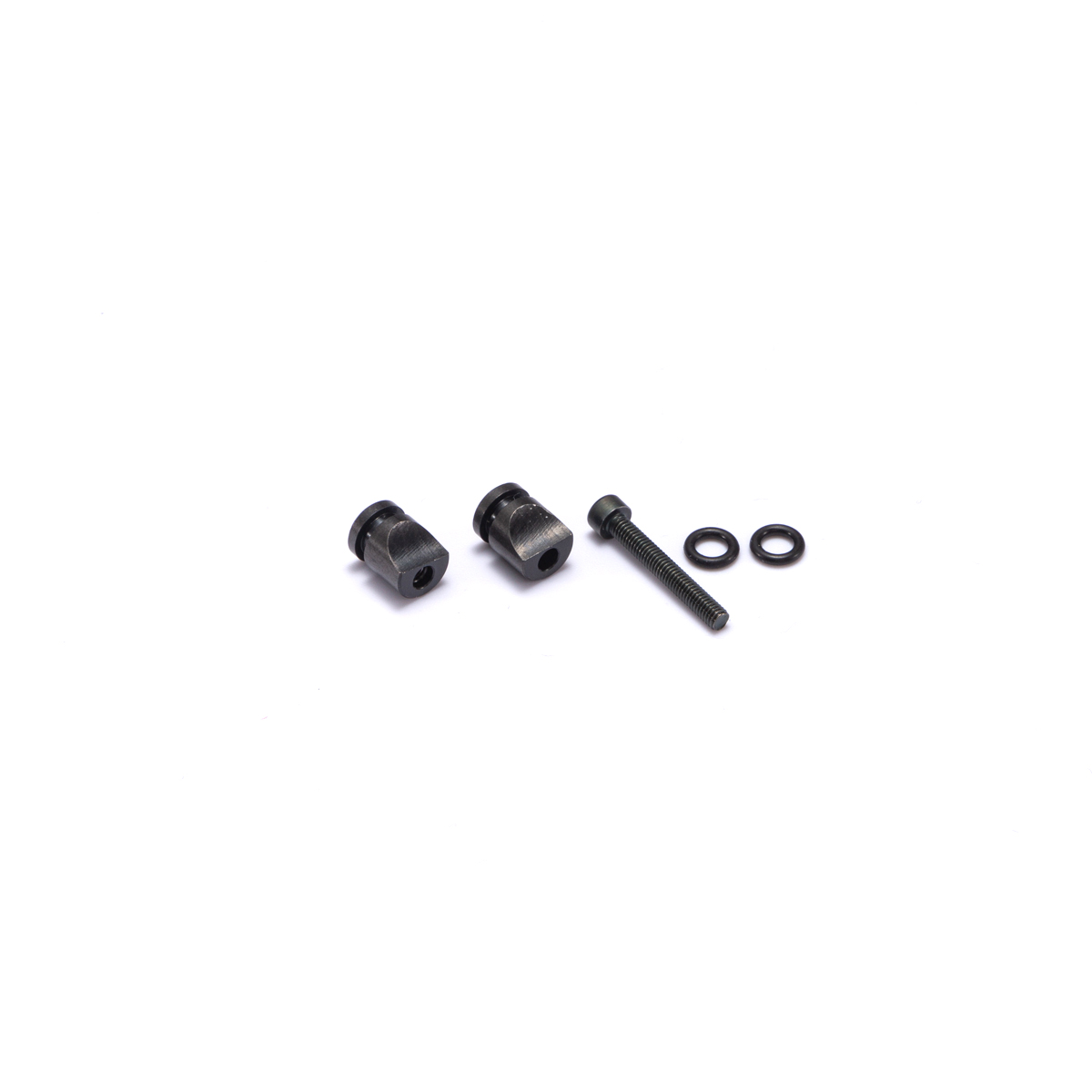

(6)Carburetor Retainer
23981740(Code)

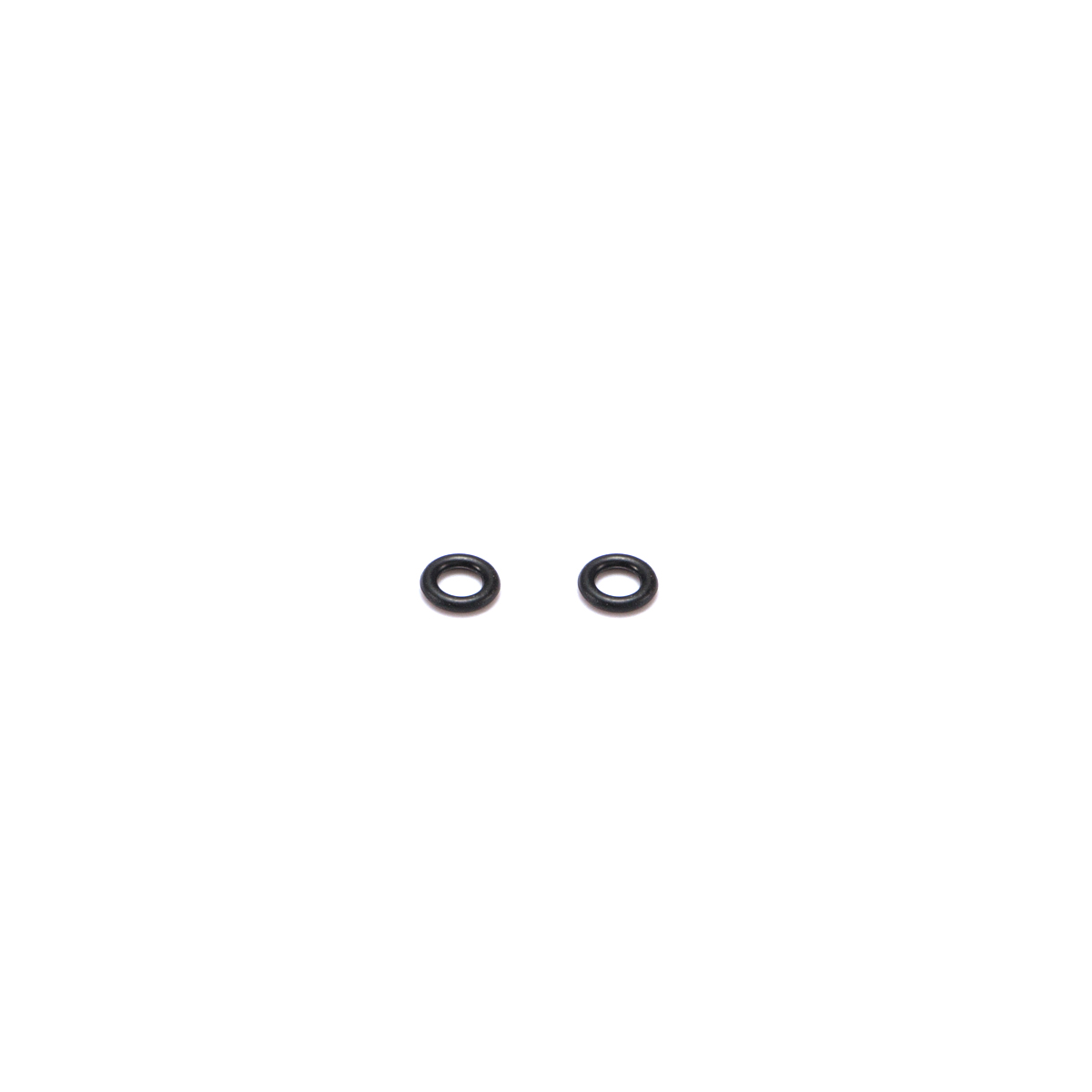

(6-1)"O" Ring
24881824(Code)

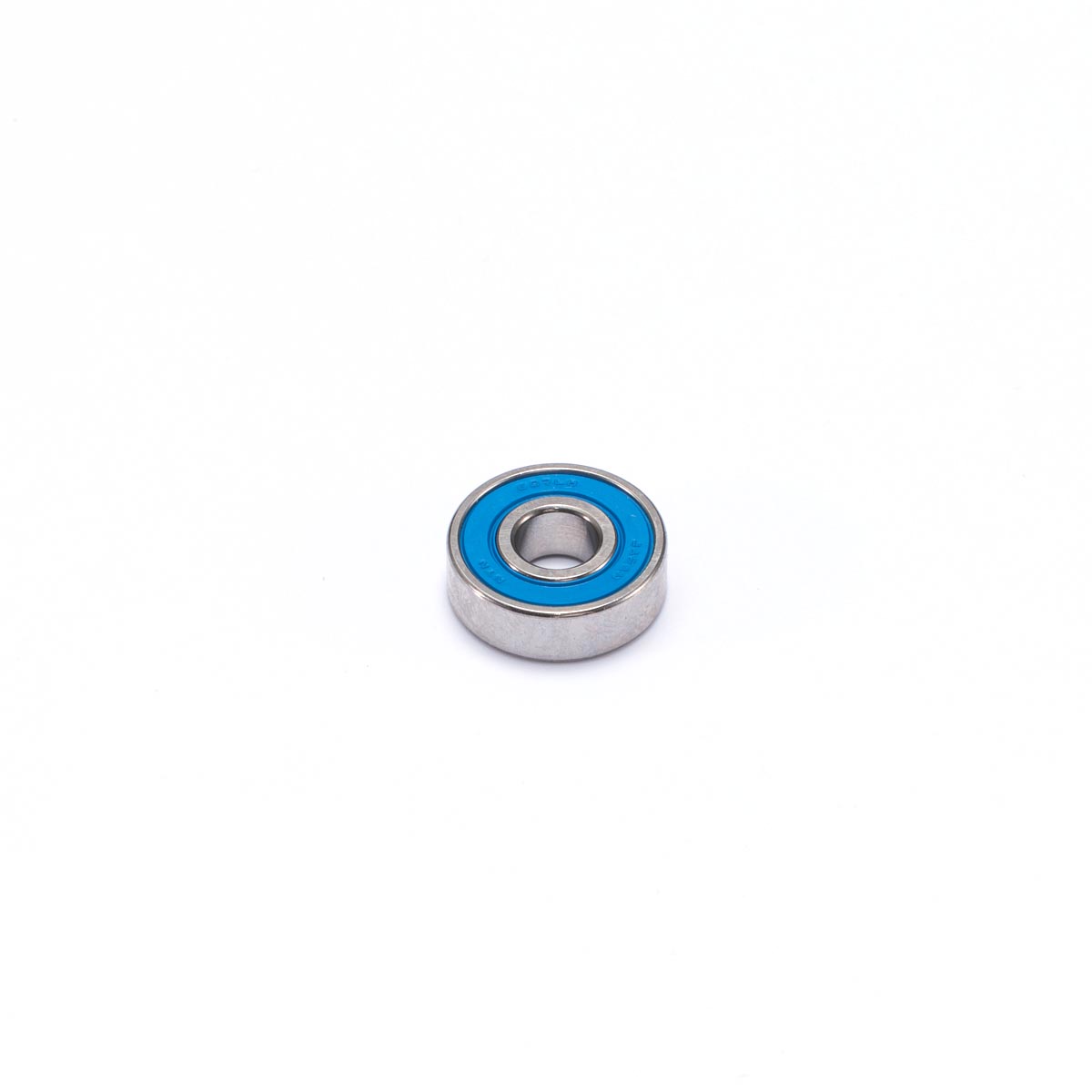

(7)Bearing(F)
23731020(Code)

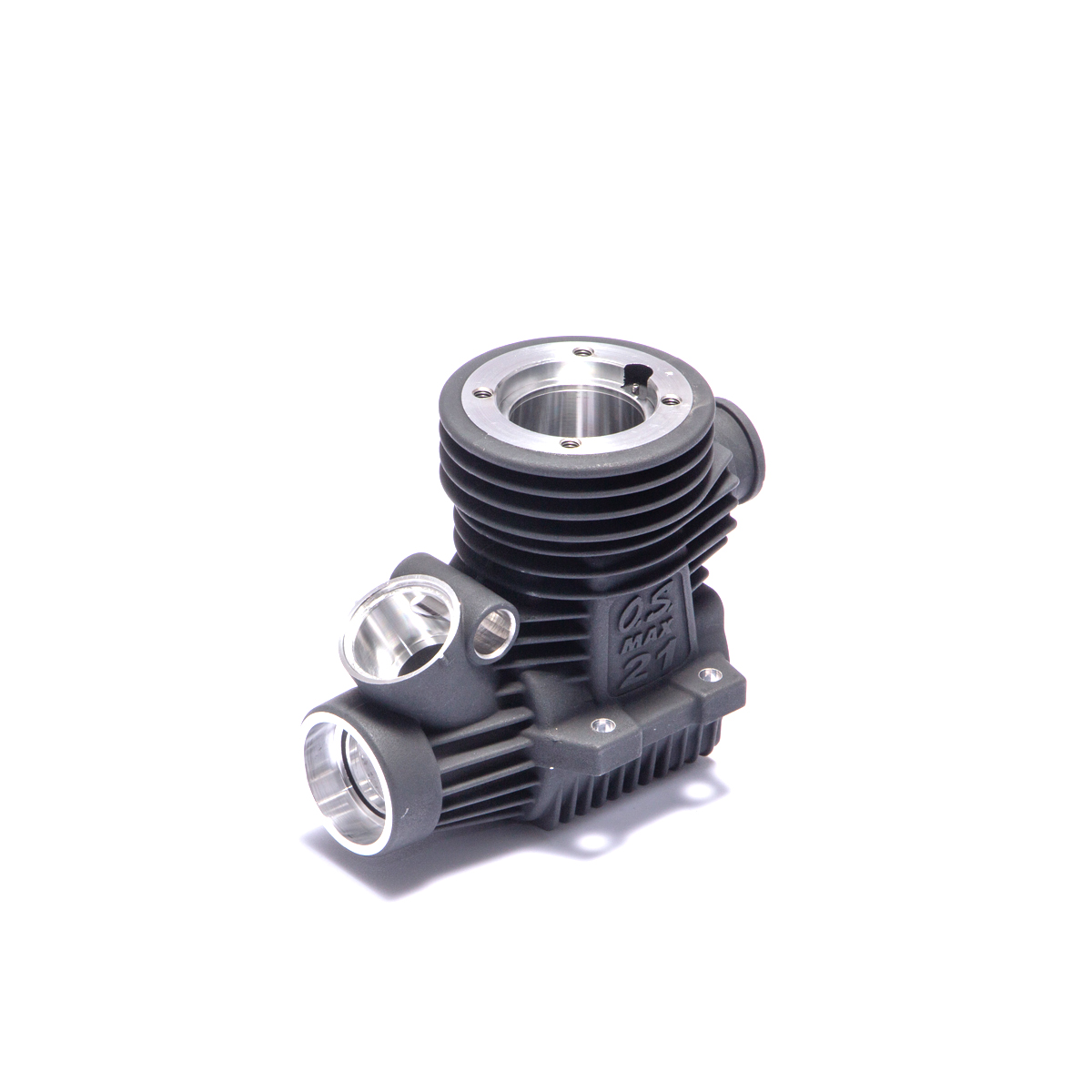

(8)Crankcase
2A201000(Code)

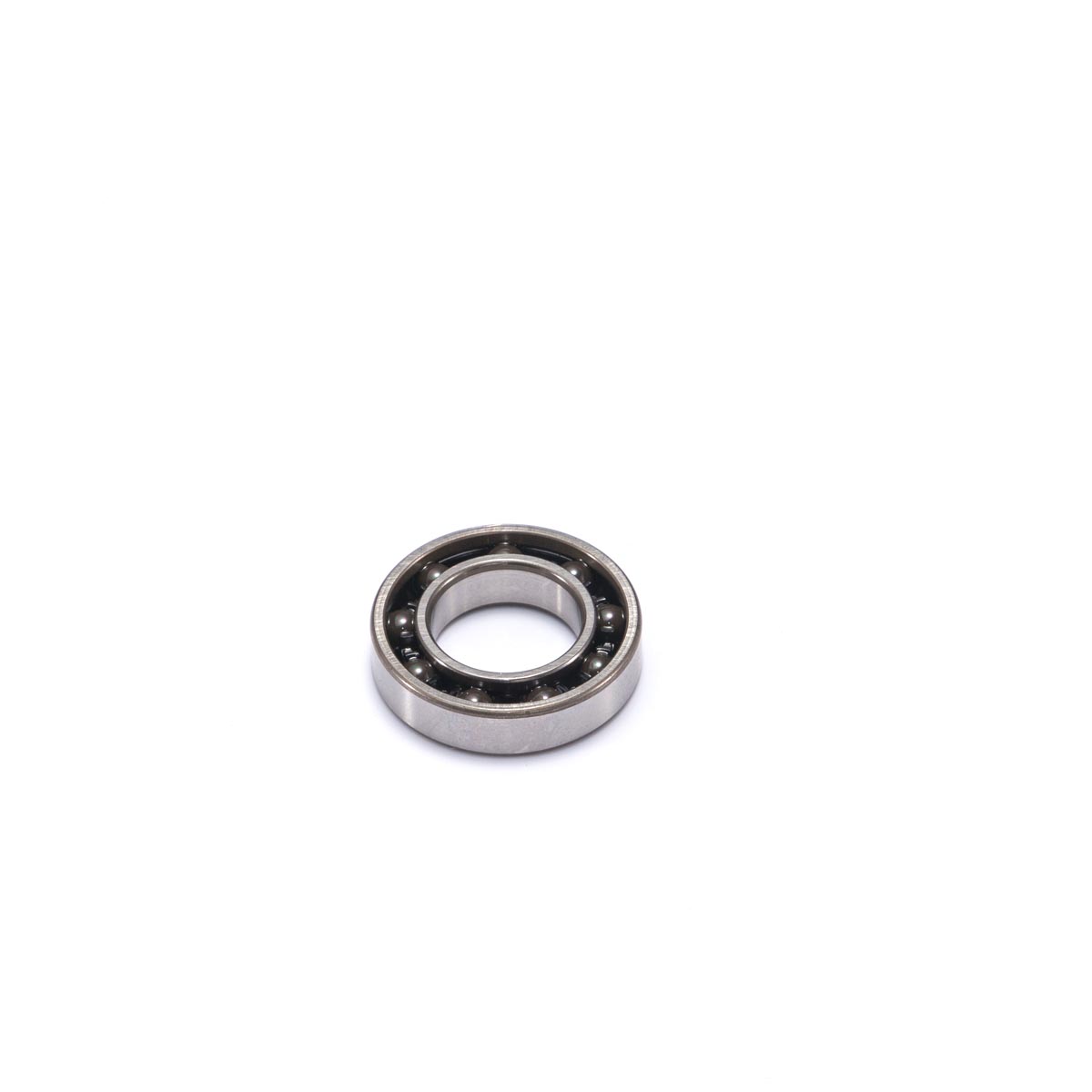

(9)Bearing(R)
23730050(Code)

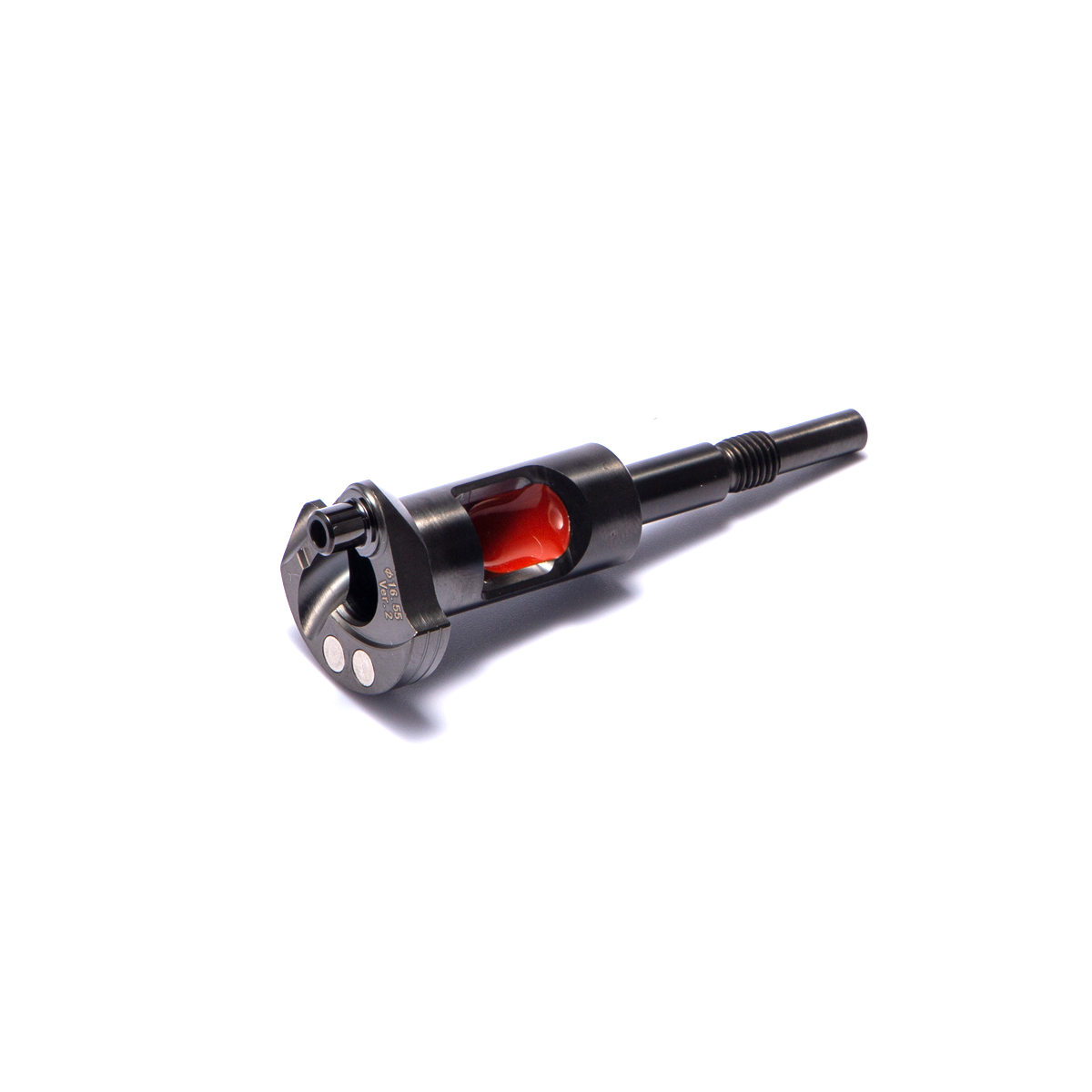

(10)Crankshaft
2CH02000(Code)

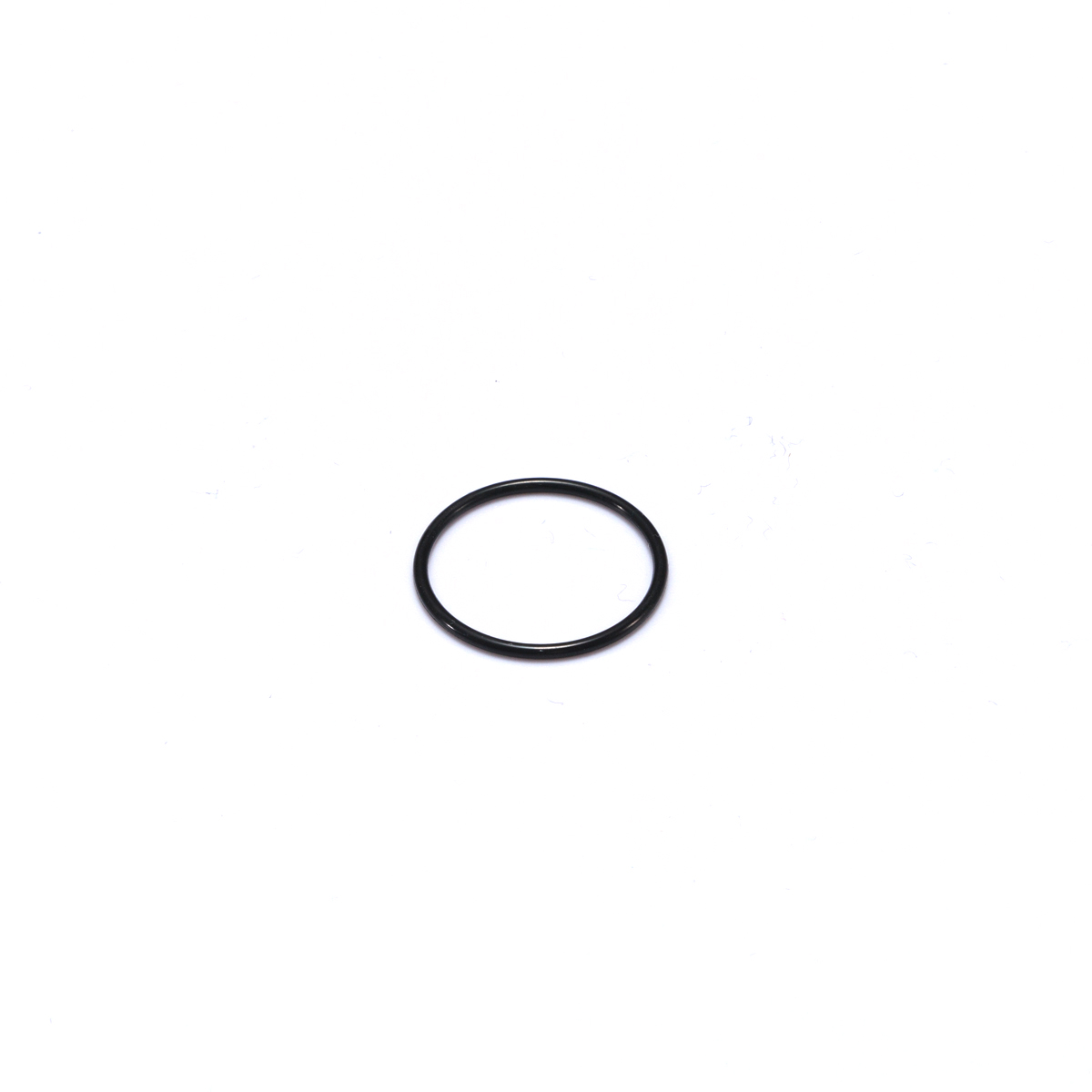

(11)Cover Gasket
23107100(Code)

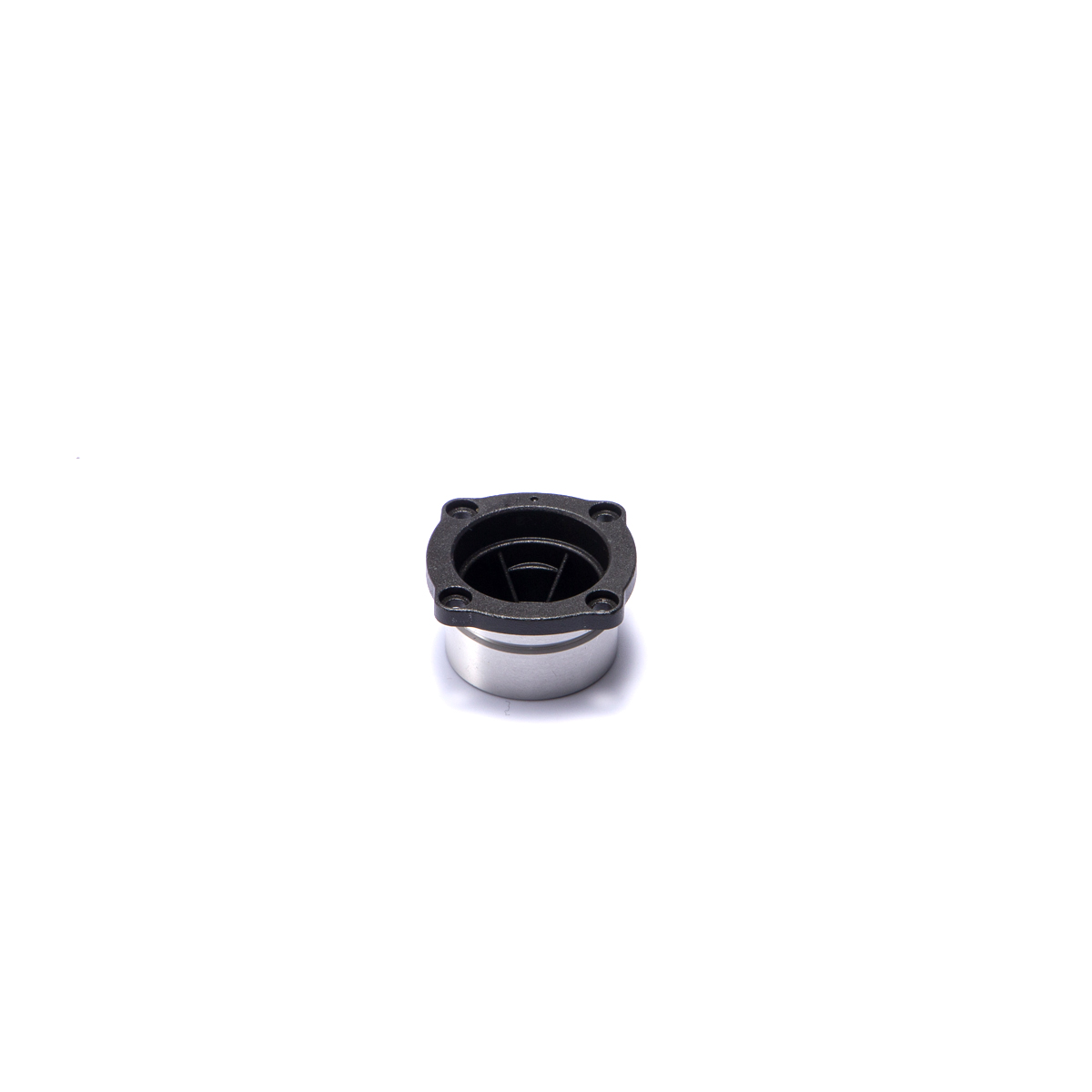

(12)Cover Plate
2A207000(Code)

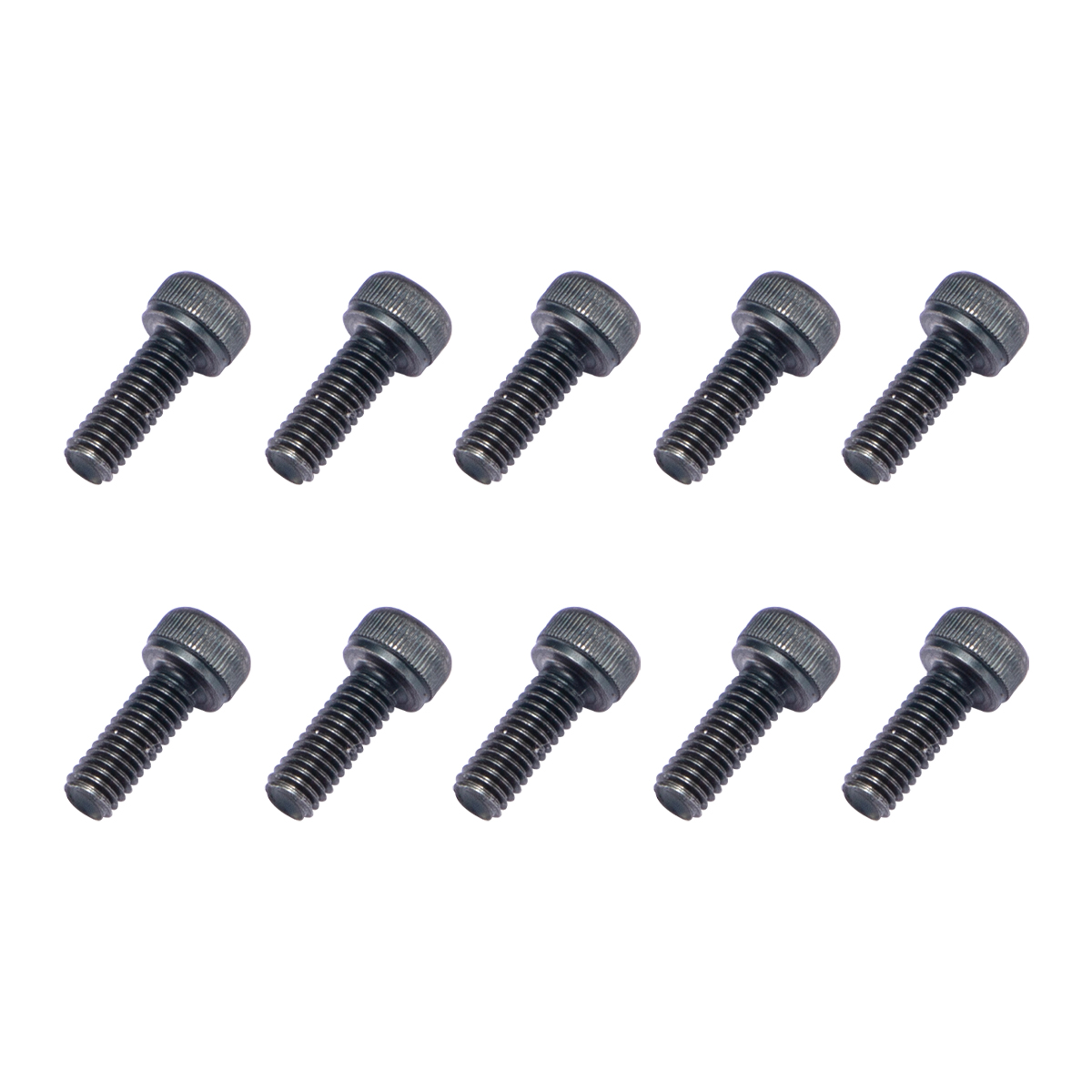

M2.6×7 Screw
79871020(Code)

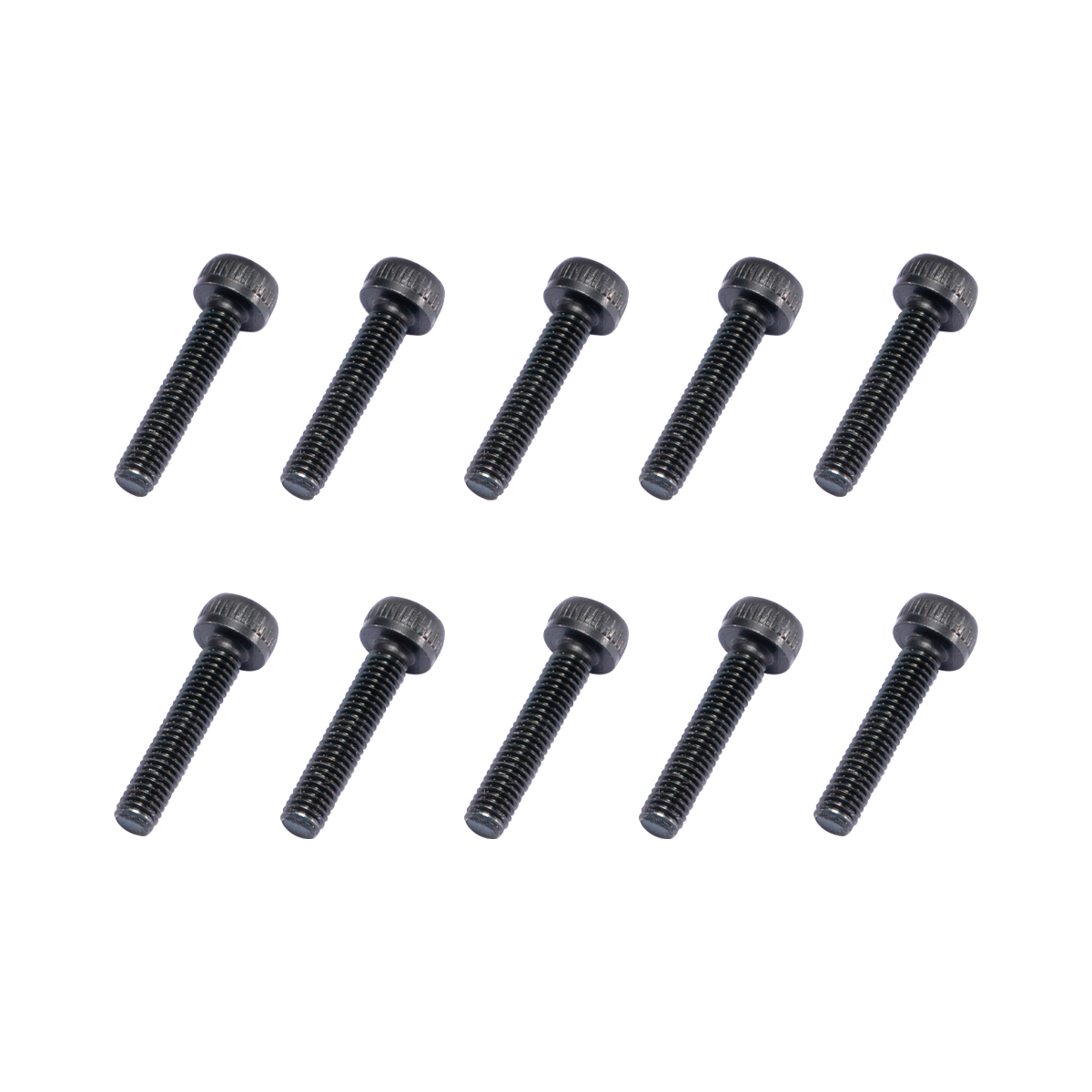

M2.6×18 Screw
79871055(Code)
M3×18 Screw
79871180(Code)
