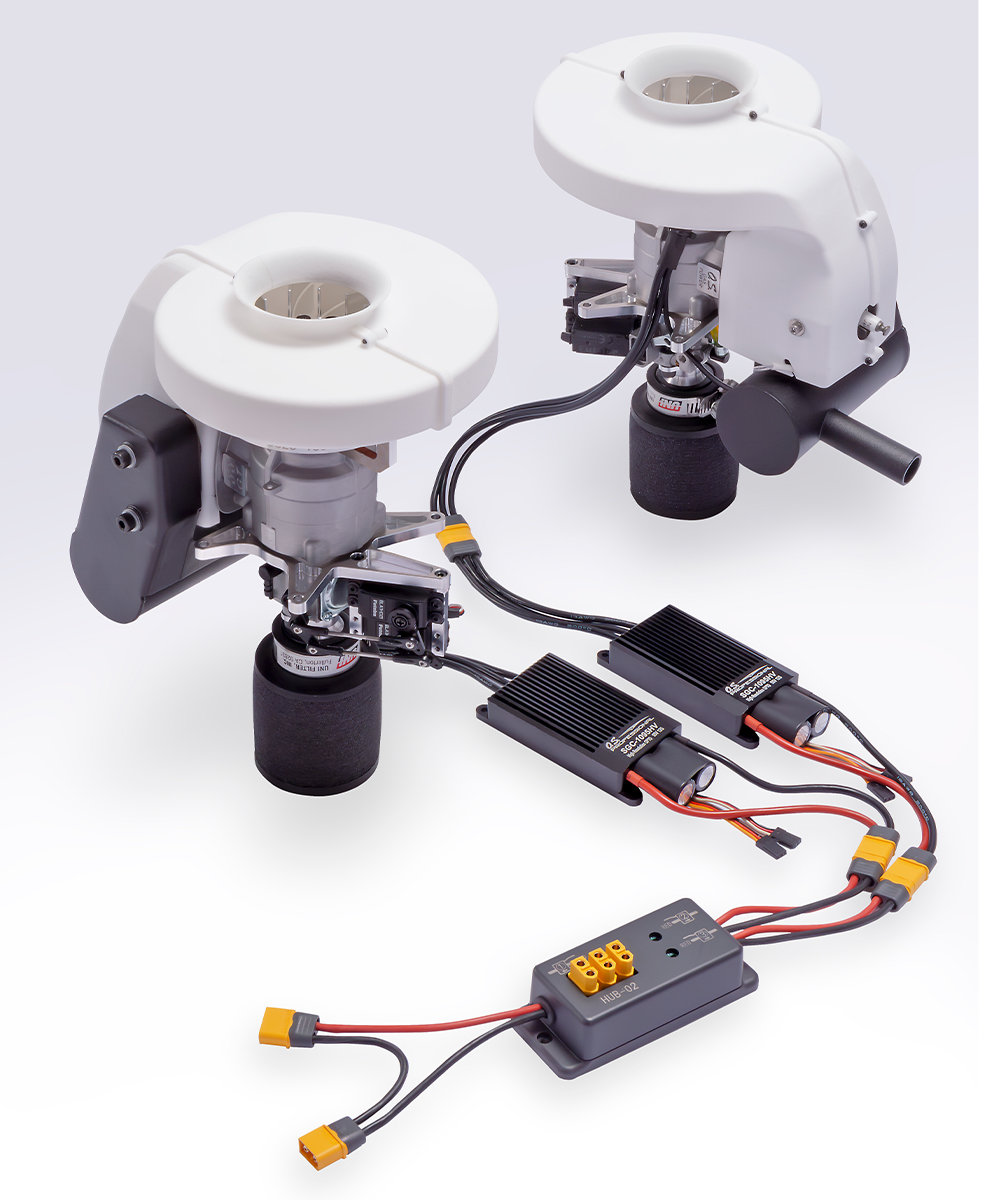

GT33REU TWIN RANGE EXTENDER
(A GENERATOR TO BE BUILT IN A DRONE)
GT33REU in Parallel Operation is now available. By combining 2 GT33REU units, a continuous rated output of 2.0 kW can be achieved. It can be used in larger drones that requires more power than single GT33REU can handle. Rotation speed of the engine is automatically optimized according to the power consumption of connected devices, allowing for extended operation when using lower load electronic devices.

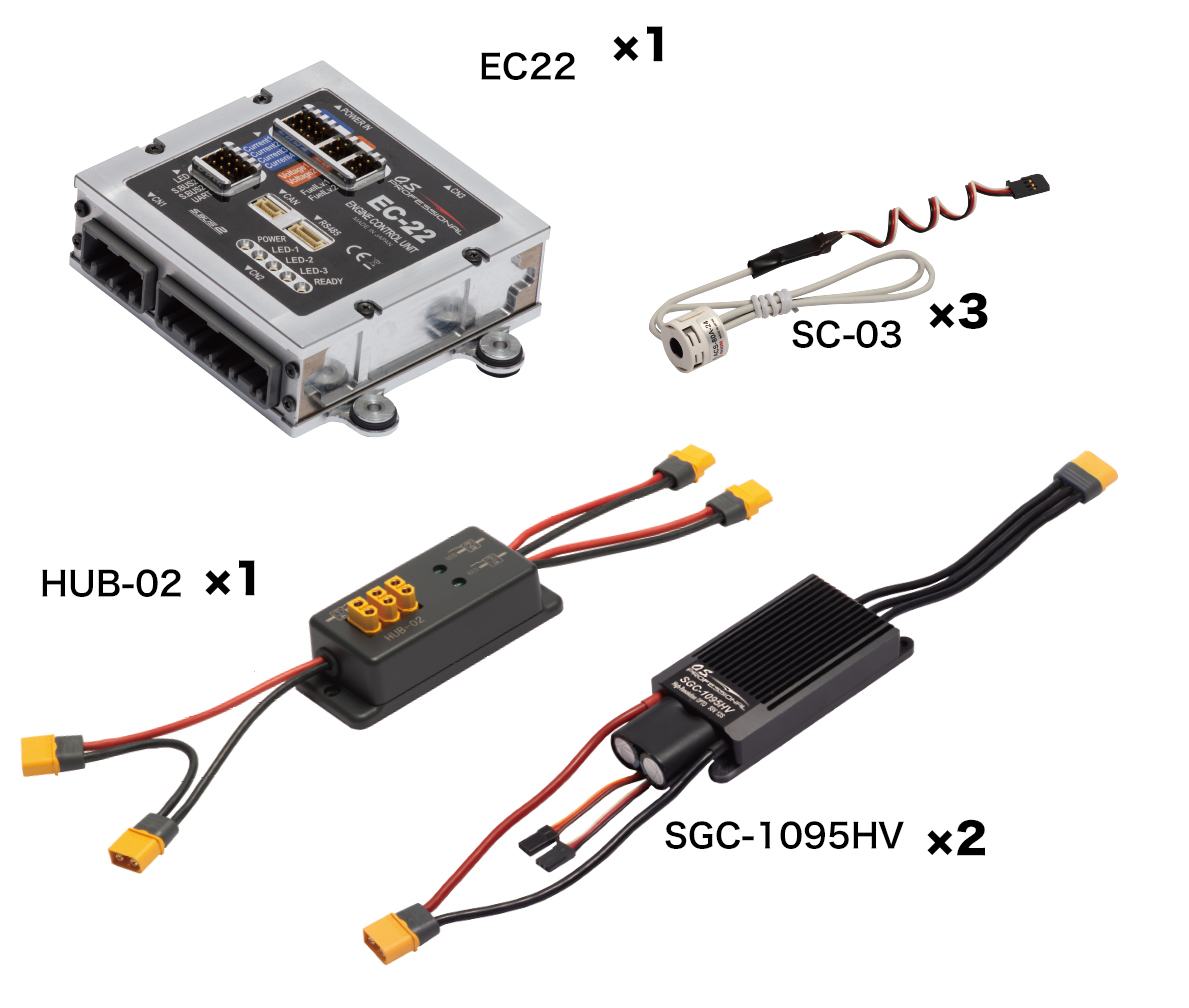

GT33REU TWIN Standard Accessories

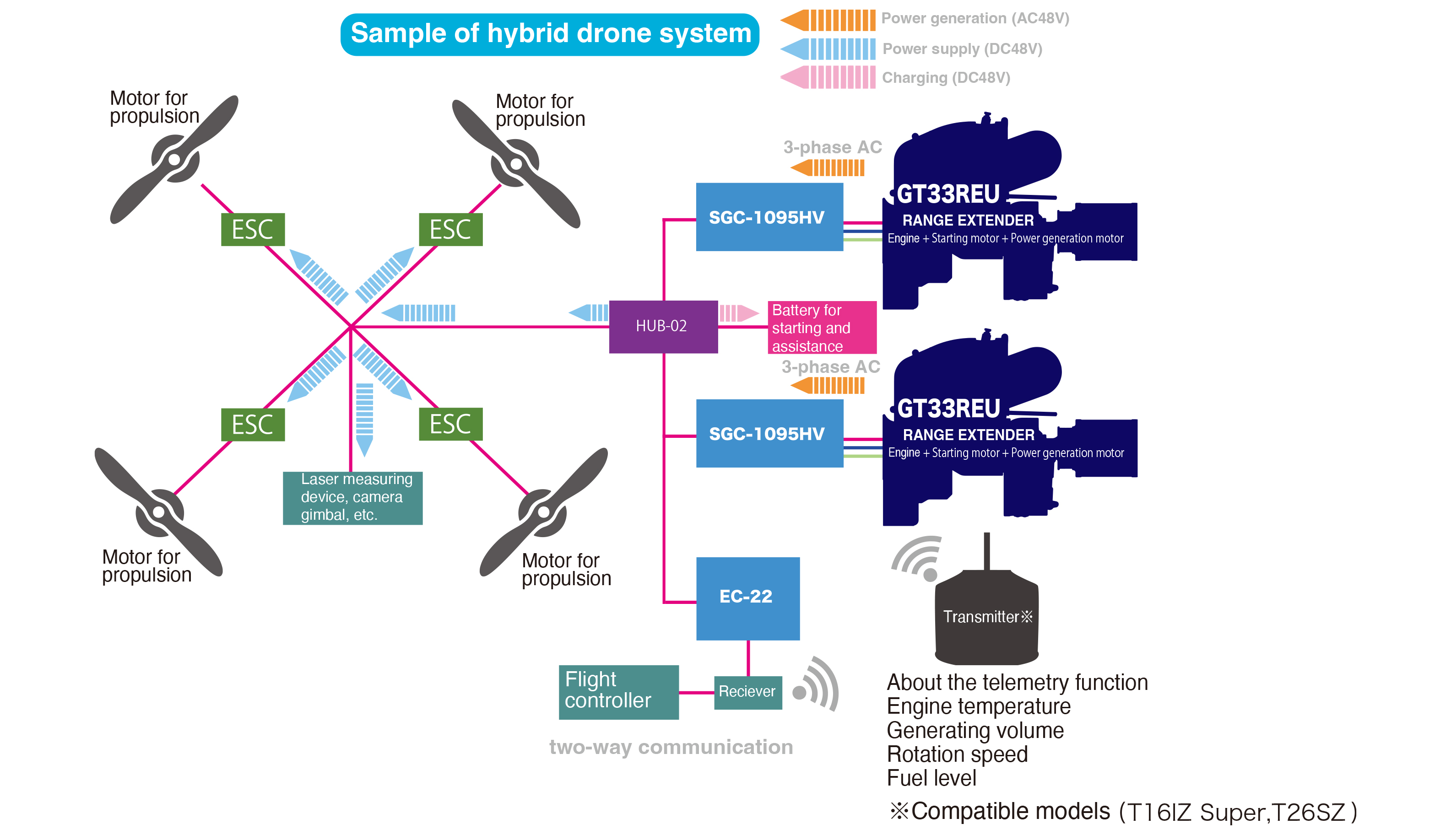

Sample of hybrid drone system
Product feature
| Model | GT33REU TWIN |
|---|---|
| Usage | Range extender for drone |
| Type of engine | Forced air-cooled, 2-stroke, reciprocating single cylinder engine |
| Displacement | 33cc ×2 |
| bore x stroke | 36.0mm × 32.4mm |
| Constant output rating | 2.0kW |
| Voltage | 48V |
| Weight | 5,650g （body4,500g、accessories1,150g） |
| Starting method | By a built-in starter motor |
| Fuel | Mixed gasoline with 2-strode oil (25:1) |
| Lubrication method | Mixed gasoline with 2-stroke oil |
| Carburetor | Diaphragm type, Walbro WT |
| Ignition type | CDI battery ignition |
| Spark plug | M 10mm (NGK CM-6 type)） |
