O.S.SPEED R21 SHIMO EDITION 2 Combo Set

O.S.SPEED R21 SHIMO 1アウターヘッド 2インナーヘッド 2-1インナーヘッド Oリング 3ヘットガスケット 4ビルトアップパーツセット 4-1 4-2 4-3 4-4 5 6 6-1 7 8 9 10 11 12 スクリュー スクリュー スクリュー

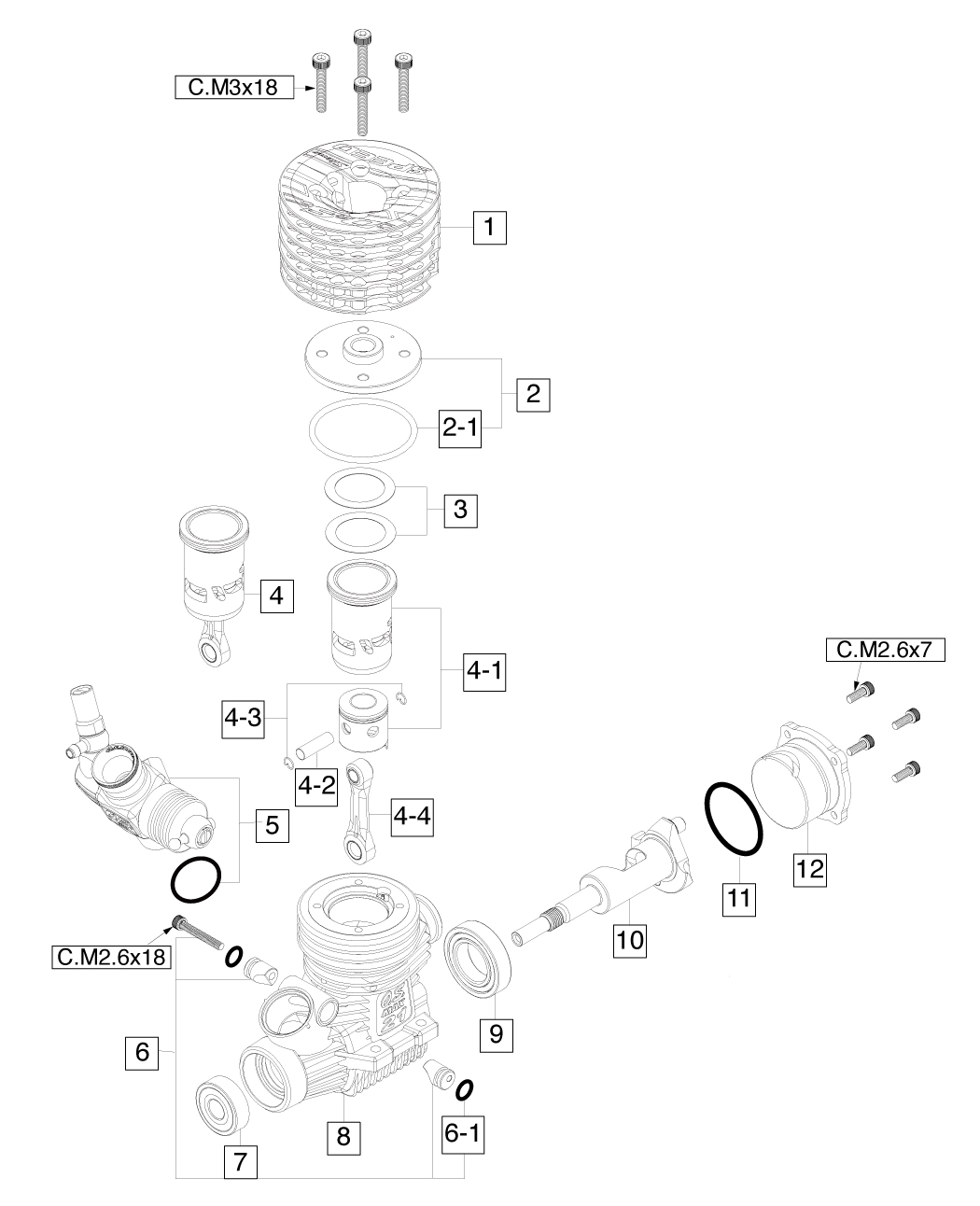

O.S.SPEED R21 SHIMO EDITION 2 Exploded view・Manual


O.S.Official WEB
O.S.Official WEB

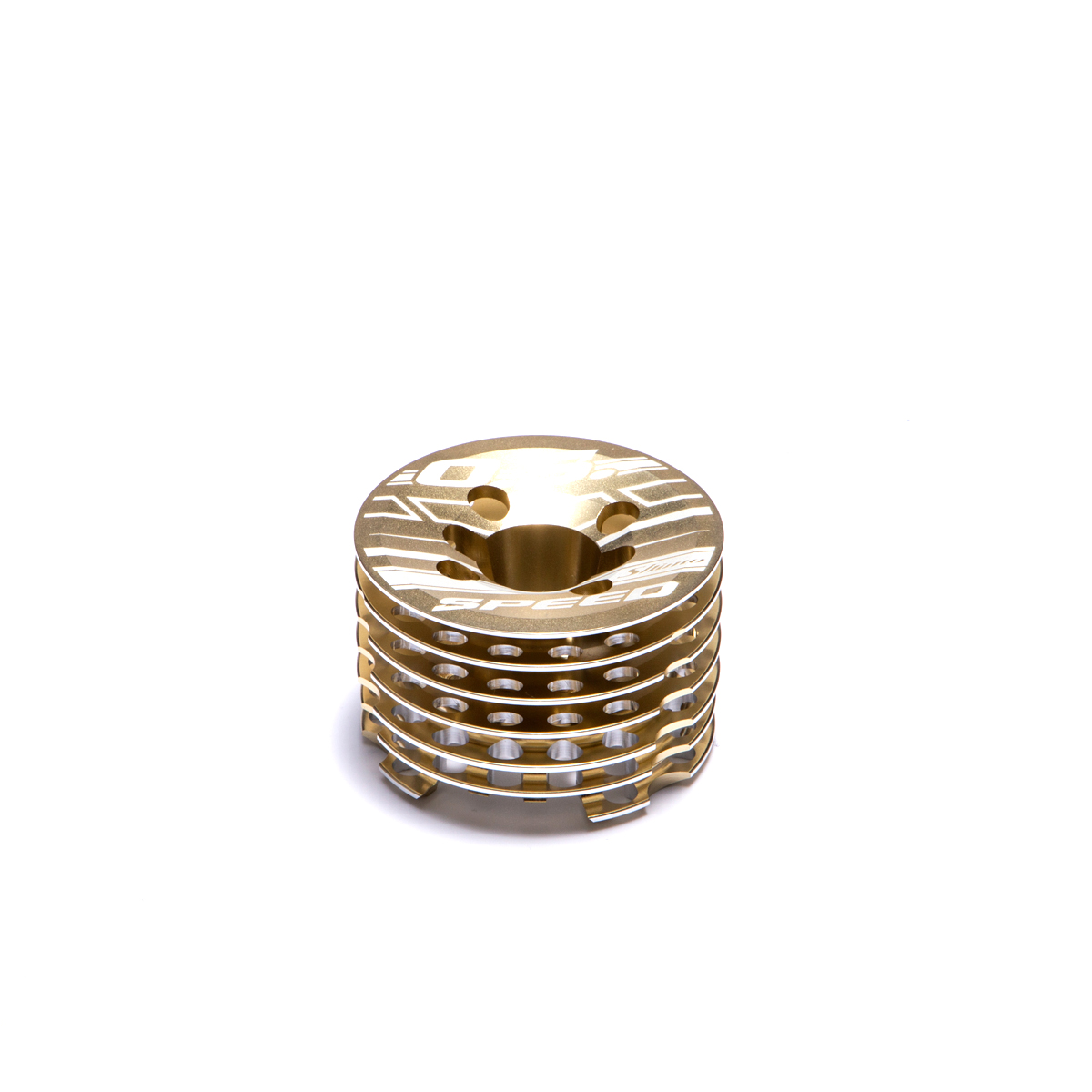

(1)Outer Head
2DJ04000(Code)
(2)Inner Head
2C604100(Code)
(2-1)Inner Head "O" Ring
2BN04180(Code)
(3)Head Gasket
2A004160(Code)
(4)Built-Up Parts Set
2DJ03010(品番)

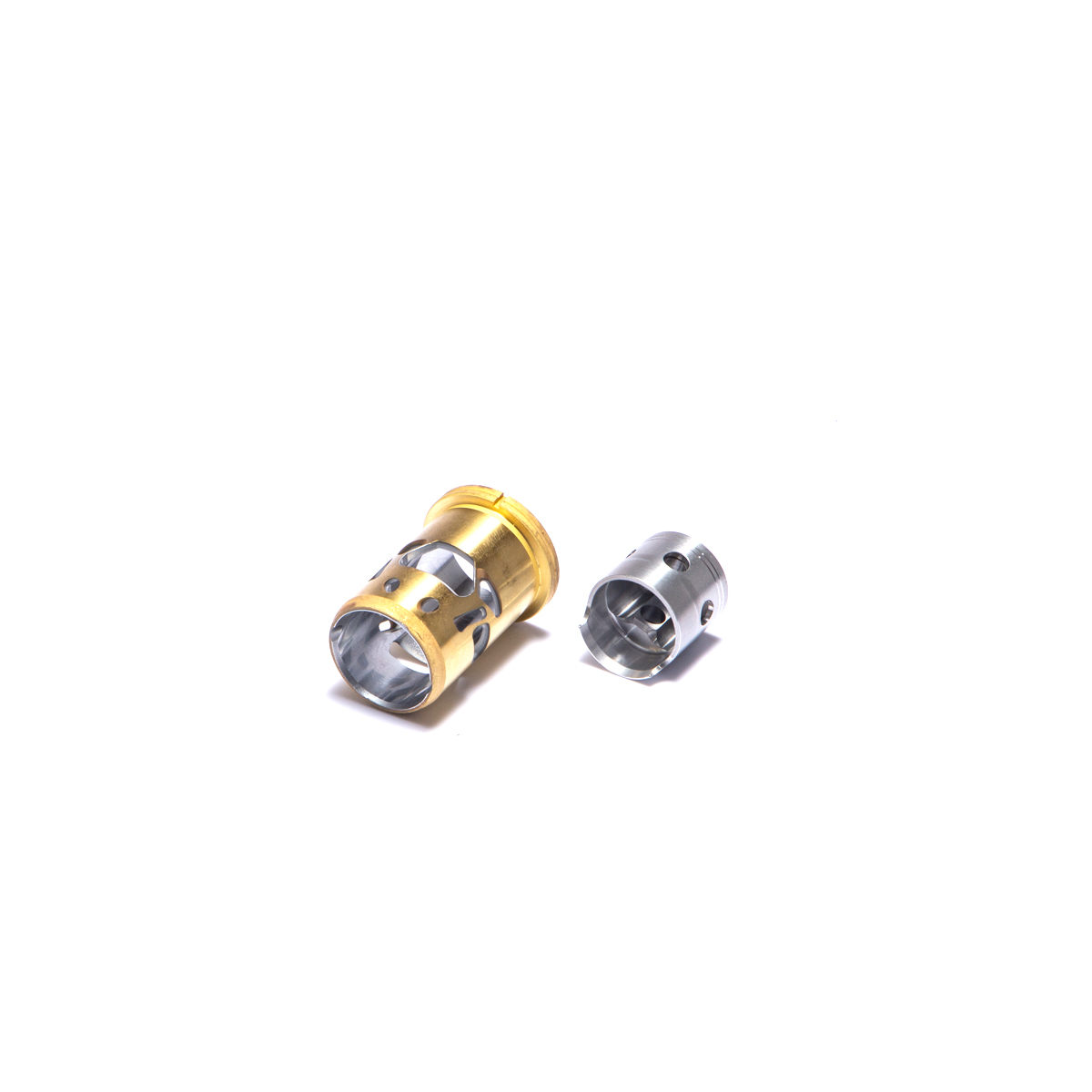

(4-1)Cylinder & Piston Assembly
2DJ03000(Code)
(4-2)Piston Pin
22016000(Code)
(4-3)Piston Pin Retainer
2AP17000(Code)
(4-4)Connecting Rod
23755024(Code)

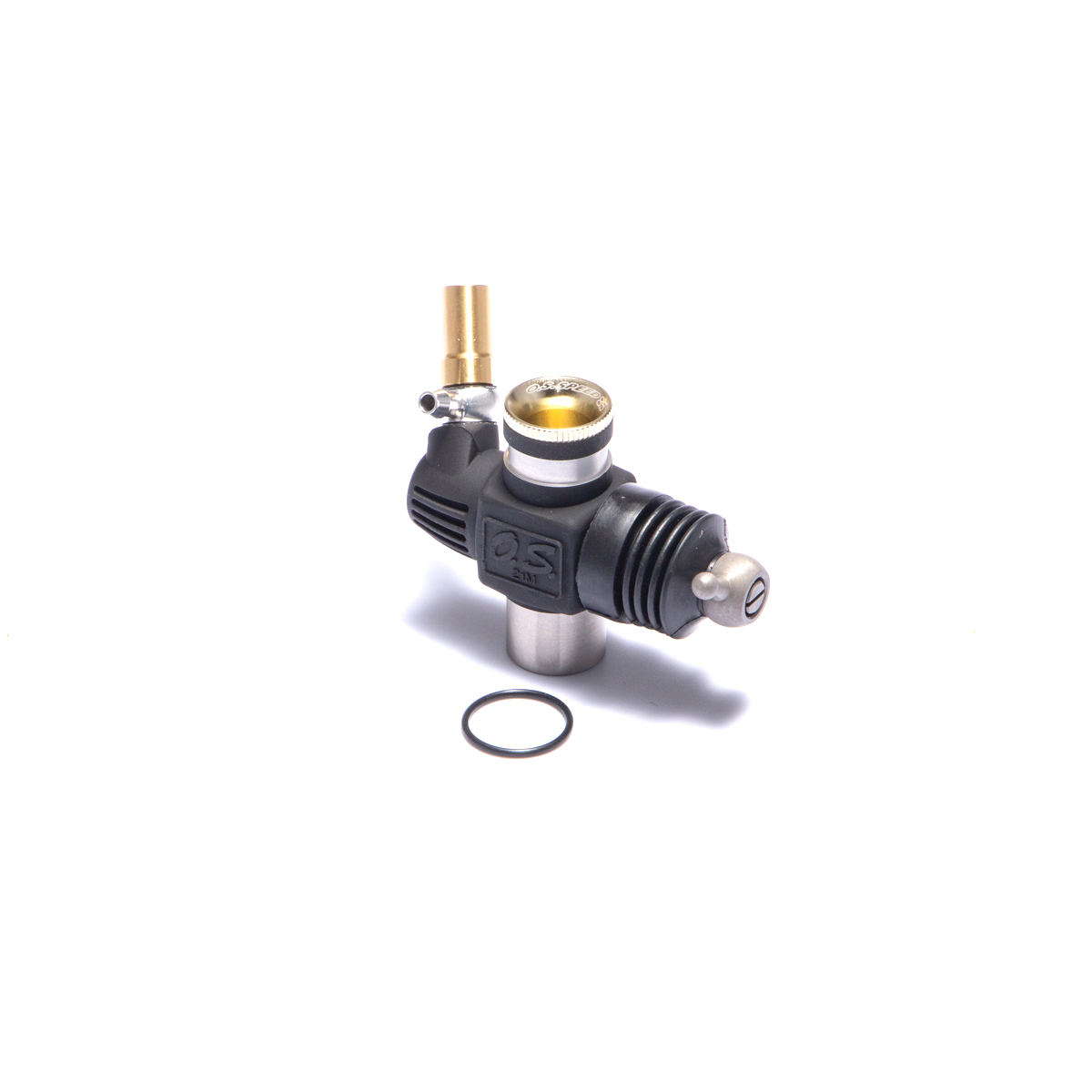

(5)Carburetor Complete
2DJ81000(Code)
(6)Carburetor Retainer Assembly
23981740(Code)
(6-1)"O" Ring
24881824(Code)
(7)Ball Bearing(F)
23731000(Code)
(8)Crankcase
2DJ01000(Code)
(9)Ball Bearing(R)
23730020(Code)

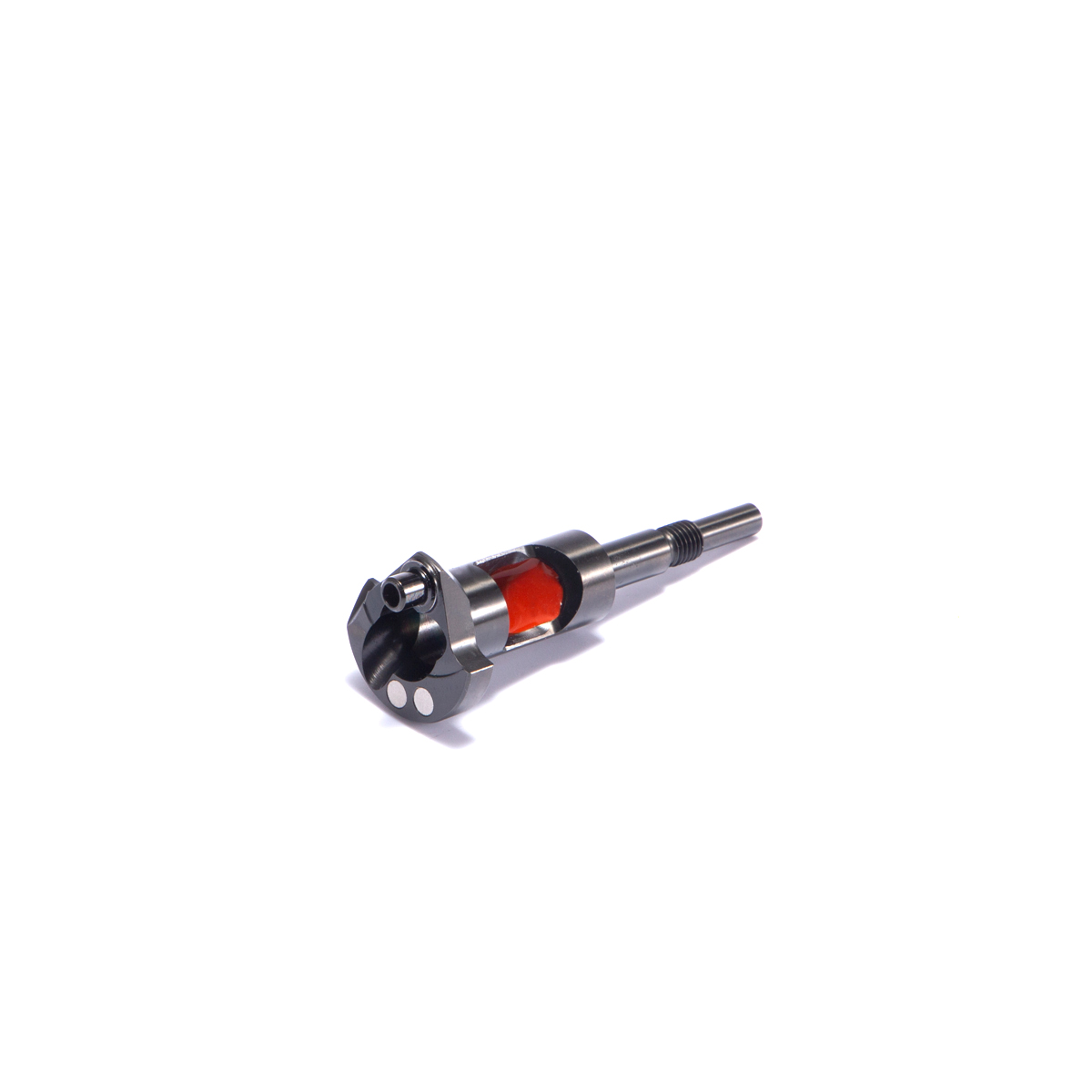

(10)Crankshaft
2DJ02000(Code)
(11)Cover Gasket
23107100(Code)
(12)Cover Plate
2A007000(Code)
M2.6×7 Screw
79871020(Code)
M2.6×18 Screw
79871055(Code)
M3×18 Screw
79871180(Code)
