OCA-2 Series
OCA-230(30A) |
OCA-240(40A) |
|---|---|
OCA-260(60A) |
OCA-280(80A) |
OCA-2 series features
・High Performance Power FET
・You can easily make detailed settings by connecting the included program card to the main unit.
・Start protection: Stops unexpected motor rotation at the start.
・Low voltage cut: Stop the motor before it reaches a voltage that can cause loss of control or damage due to cell over-discharge.
・No signal cutoff: Turns off ESC if no signal is being received from the receiver.
・Overheat protection: Limits the output and protects the FET when the abnormal temperature rises due to overload.
・Automatic recognition of the number of battery cells: A function that automatically recognizes the number of connected battery cells.
・BEC output: Power for the receiver is supplied from ESC. SBEC adopted.

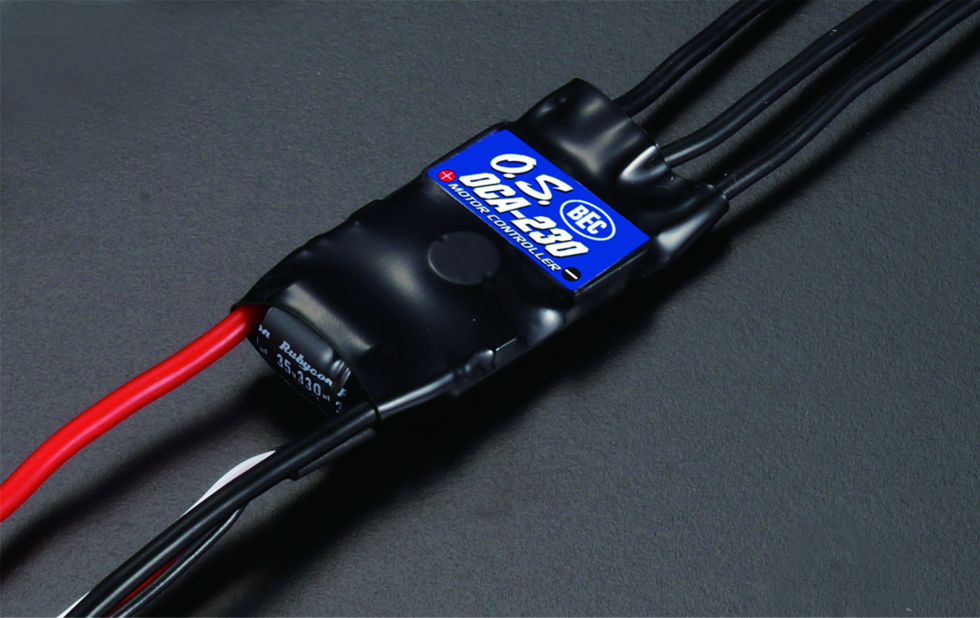

OCA-230
| Function | Forward-Stop(Brake/Reverse) |
| Working voltage range | 6～16.8V |
| Load current (Peak) | 30A (35A 5 seconds) |
| BEC output | 5.5V, 3A (Peak 4A) |
| Size | 45x25x12mm |
| Weight | 25 g |
| Cell number | 6-12 NiCd/NiMH, 2-4 LiPo |
| Parameter setting | ESC/Programming card OCP-2 (supplied) |
| Protective function | Start protection/Low voltage cut-off/ No signal cut-off/Overheat protection |
| PWM Frequency | 8-16 kHz |

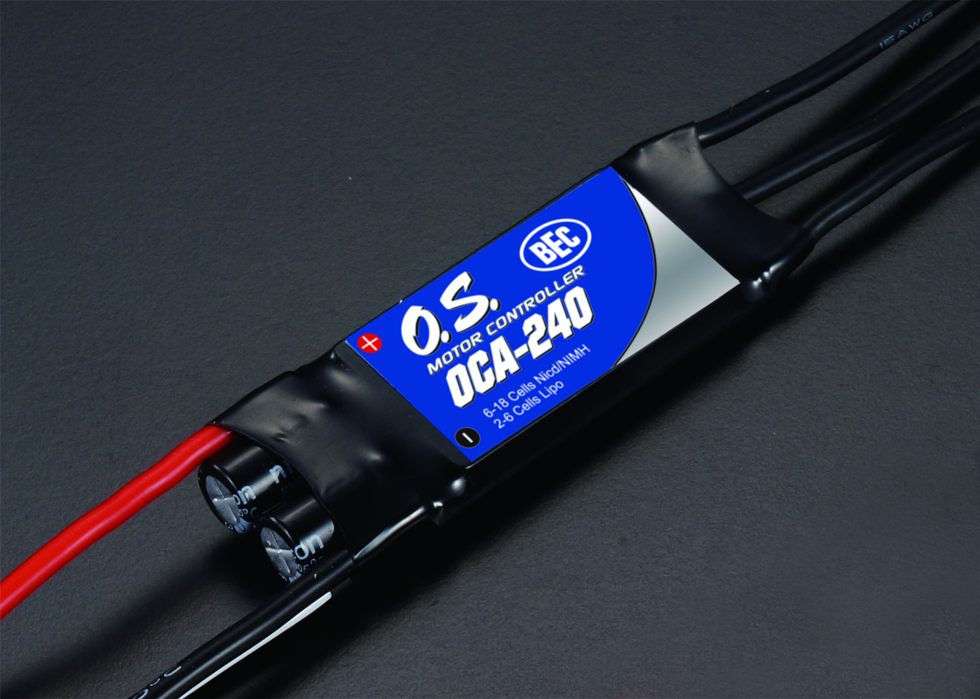

OCA-240
| Function | Forward-Stop(Brake/Reverse) |
| Working voltage range | 6~25.2V |
| Load current (Peak) | 40A (50A 5 seconds) |
| BEC output | 5.5V, 3A (Peak 5A) |
| Size | 75x28x12mm |
| Weight | 45g |
| Cell number | 6-18 NiCd/NiMH, 2-6 LiPo |
| Parameter setting | ESC/Programming card OCP-2 (supplied) |
| Protective function | Start protection/Low voltage cut-off/ No signal cut-off/Overheat protection |
| PWM Frequency | 8-16 kHz |

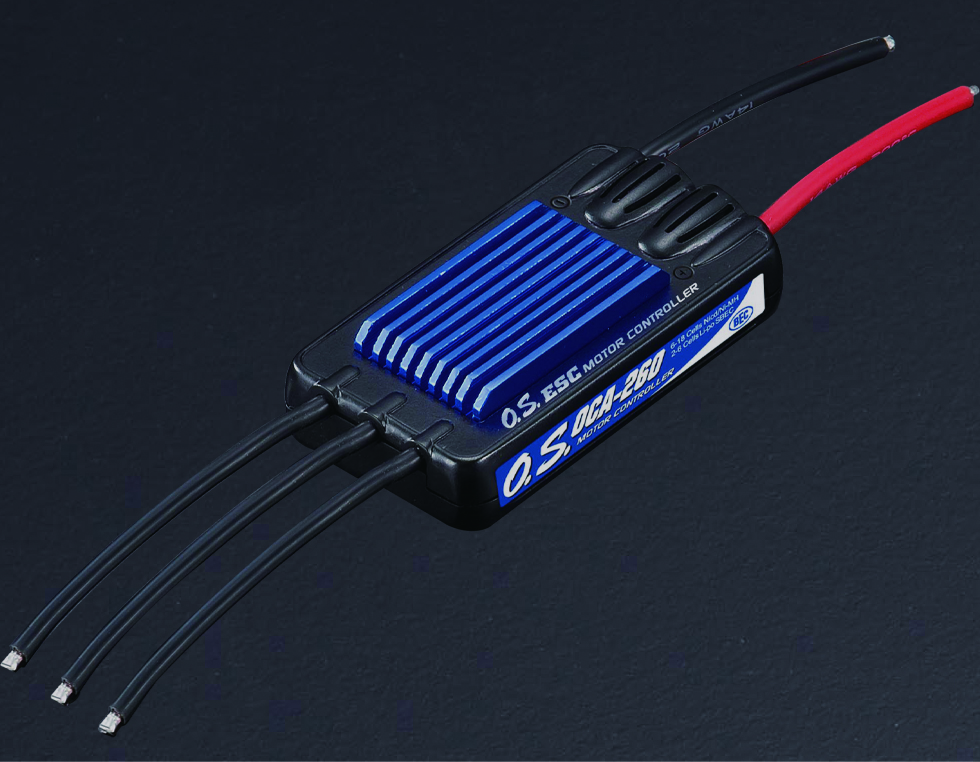

OCA-260
| Function | Forward-Stop(Brake/Reverse) |
| Working voltage range | 6~25.2V |
| Load current (Peak) | 60A (70A 5 seconds) |
| BEC output | 5.5V, 4A (Peak 5A) |
| Size | 76x40x21mm (Excluding Wirings) |
| Weight | 80g (Excluding Connectors) |
| Cell number | 6-18 Ni-Cd/Ni-MH, 2-6 Li-po |
| Parameter setting | ESC/Programming card OCP-2 (supplied) |
| Protective function | Start protection/Low voltage cut-off/No signal cut-off/Overheat protection |
| PWM Frequency | 8-16kHz |

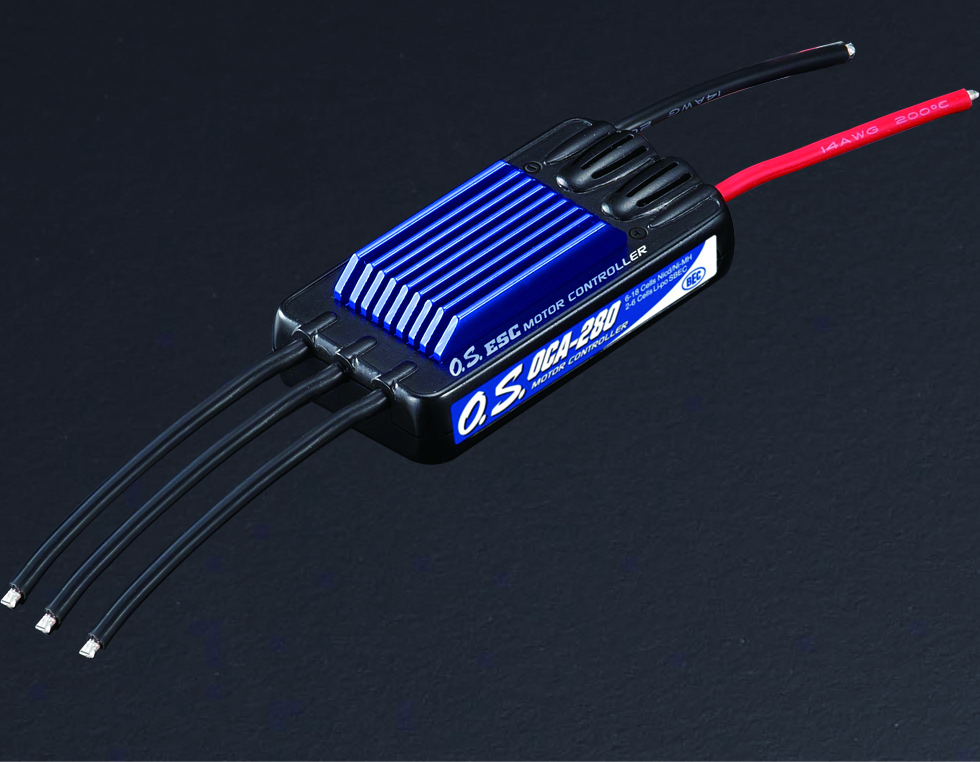

OCA-280
| Function | Forward-Stop(Brake/Reverse) |
| Working voltage range | 6~25.2V |
| Load current (Peak) | 80A (100A 5 seconds) |
| BEC output | 5.5V, 4A (Peak 5A) |
| Size | 76x40x23mm(Excluding Wirings) |
| Weight | 88g (Excluding Connectors) |
| Cell number | 6-18 Ni-Cd/Ni-MH, 2-6 Li-po |
| Parameter setting | ESC/Programming card OCP-2 (supplied) |
| Protective function | Start protection/Low voltage cut-off/No signal cut-off/Overheat protection |
| PWM Frequency | 8-16kHz |
