Home FS-64V

FS-64V (3AY00)



Introducing new FS-64V New standard for basic 4-stroke engines


For scale/sport planes

Product features:

  • By increasing the stroke, not only propellers of 12x7-8 and 13x6 sizes, but also propellers with large loads (13x7-8, 14x6) can be used without any loss of power.

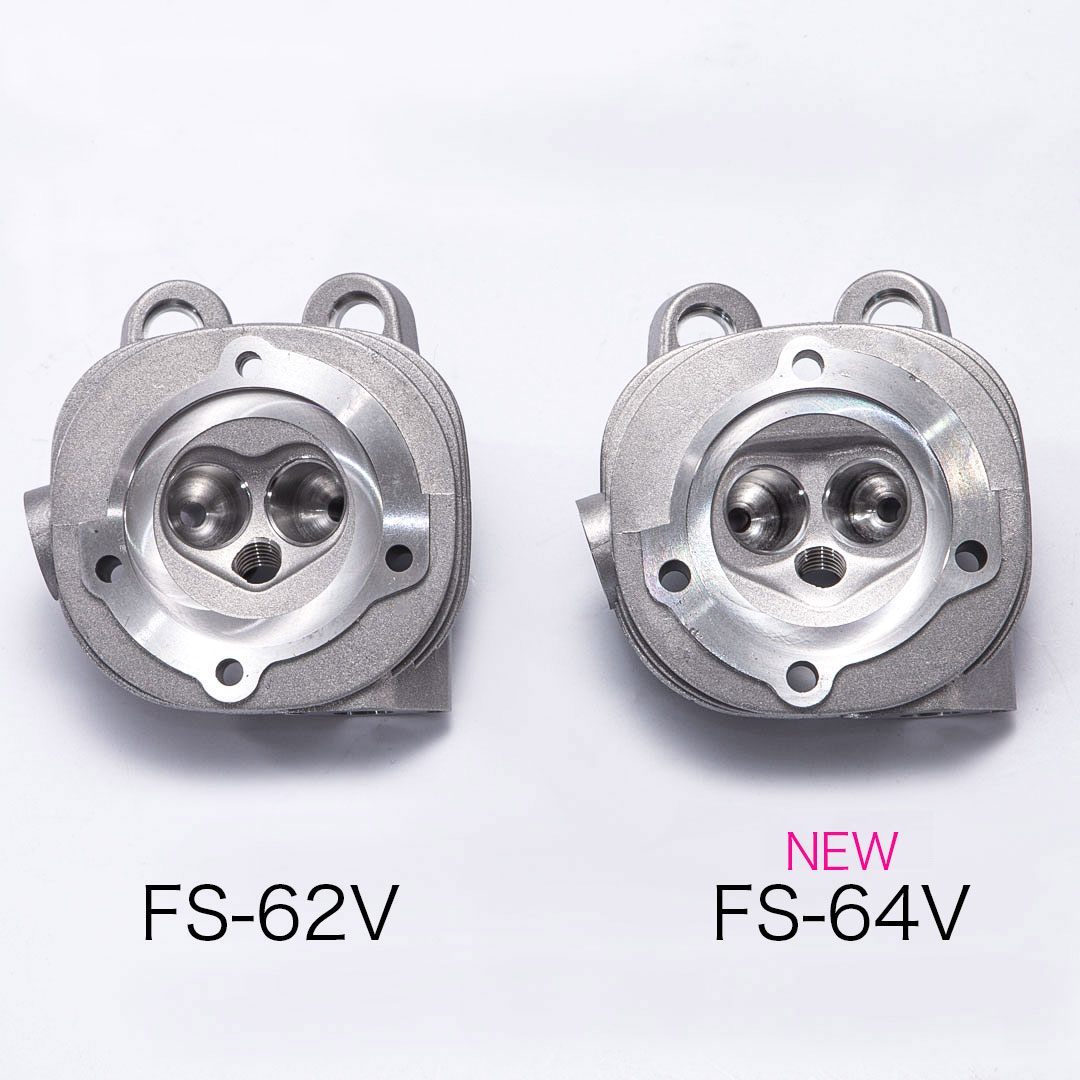

  •  A newly designed cylinder head is adopted along with the increased displacement. The internal capacity of the combustion chamber has been expanded to achieve more realistic 4-stroke exhaust sound and more power.

  • The F-4051 silencer, which is a unique design of the FS-V series, has revised the internal dimensions and improved the exhaust efficiency while maintaining the comfortable 4-stroke sound.

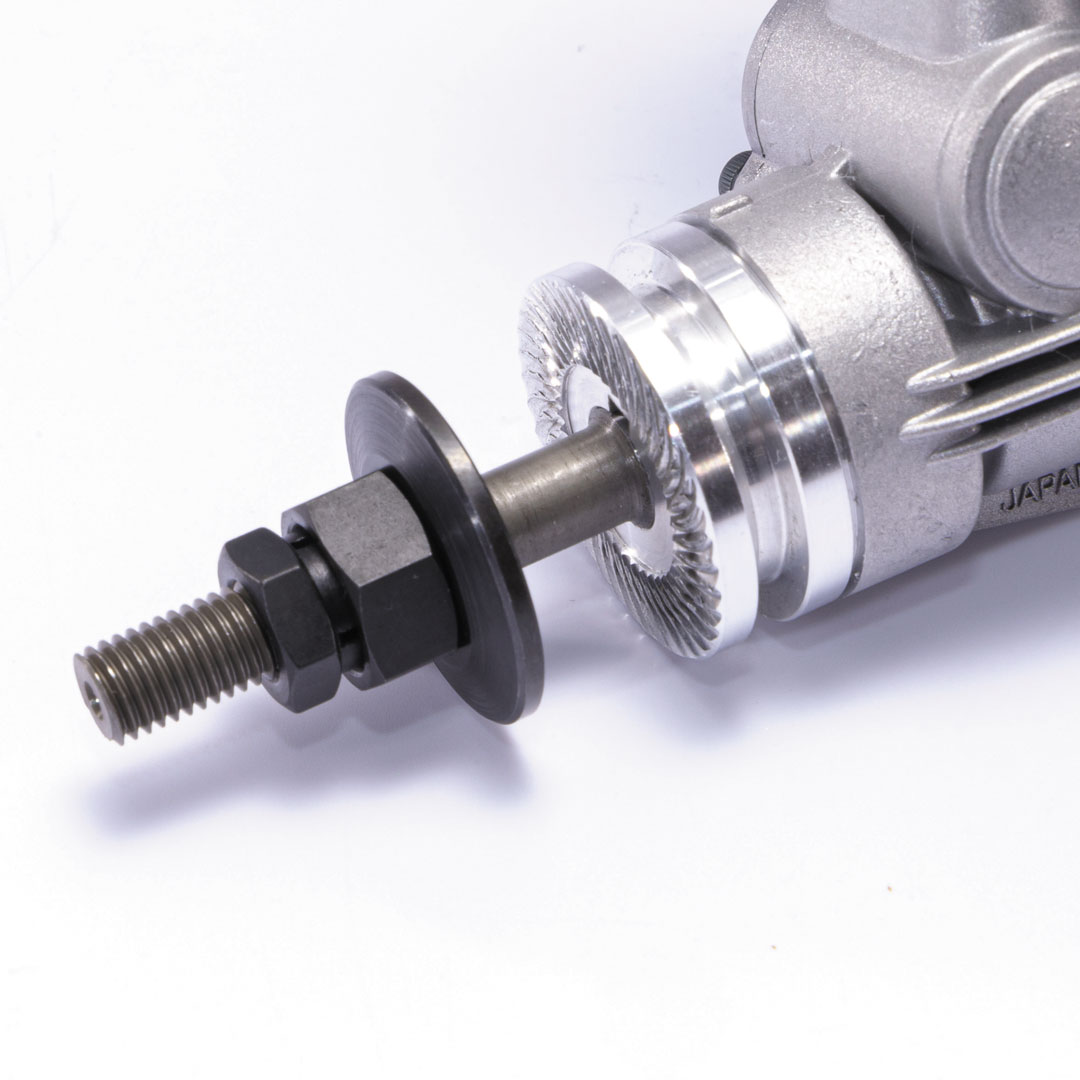

  • The drive washer has been changed to a machined aluminum with a woodruff key. Additional standard equipment is set if lock nuts that prevents the propeller from coming off.

Standard accessory:

・Type F glow plug



Spec:

Displacement10.46cc/0.638cu.in
Bore25mm/0.984in.
Stroke21.3mm/0.839in.
Output1.14ps/1.12hp/11,000r.p.m.
Practical RPM range2,400~11,000r.p.m.
Propeller
size
sport/Stunt : 12×6-8,13×6-7

Scale : 14×6
WeightEngine:442g/15.590z.

Silencer : 44g/1.550z.

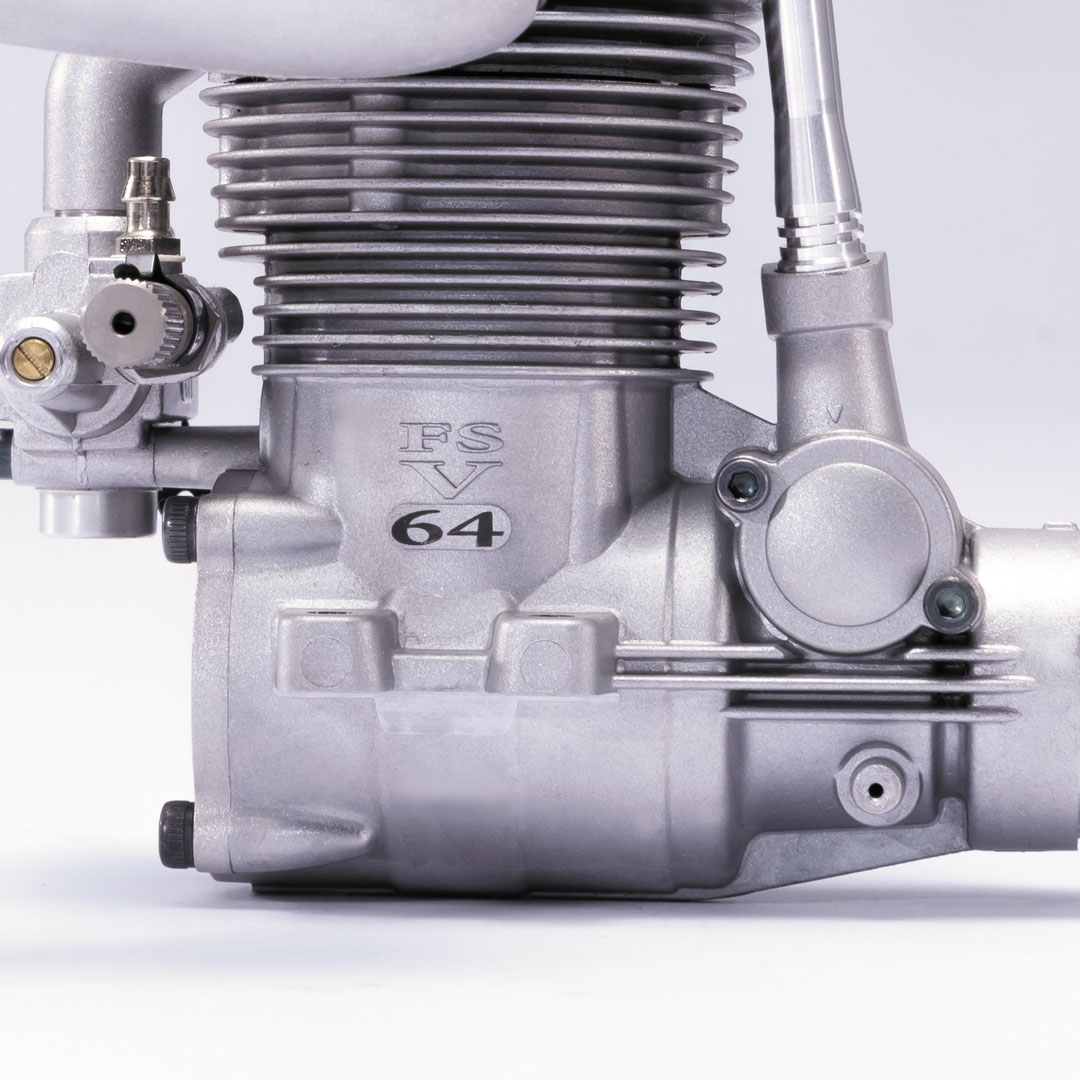

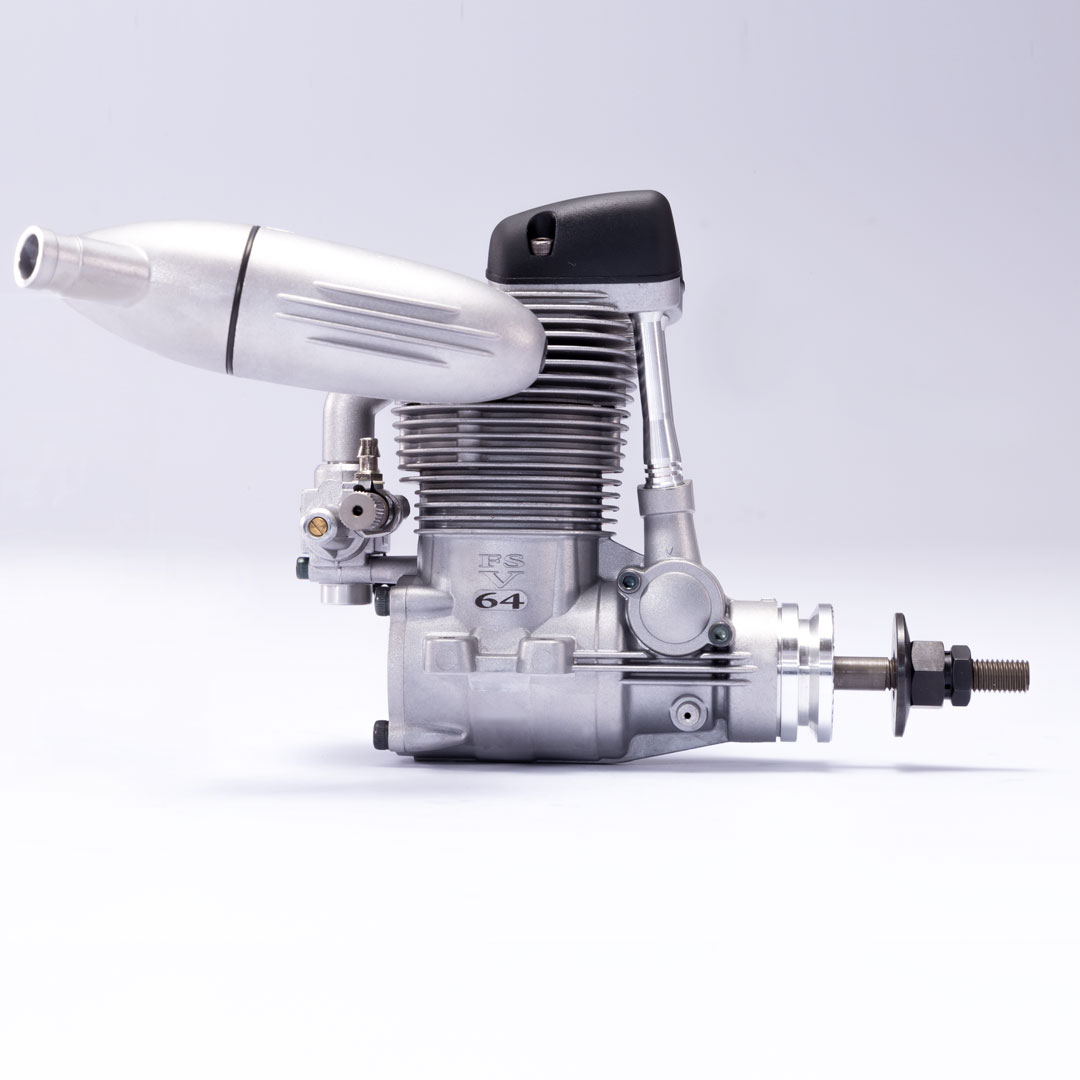

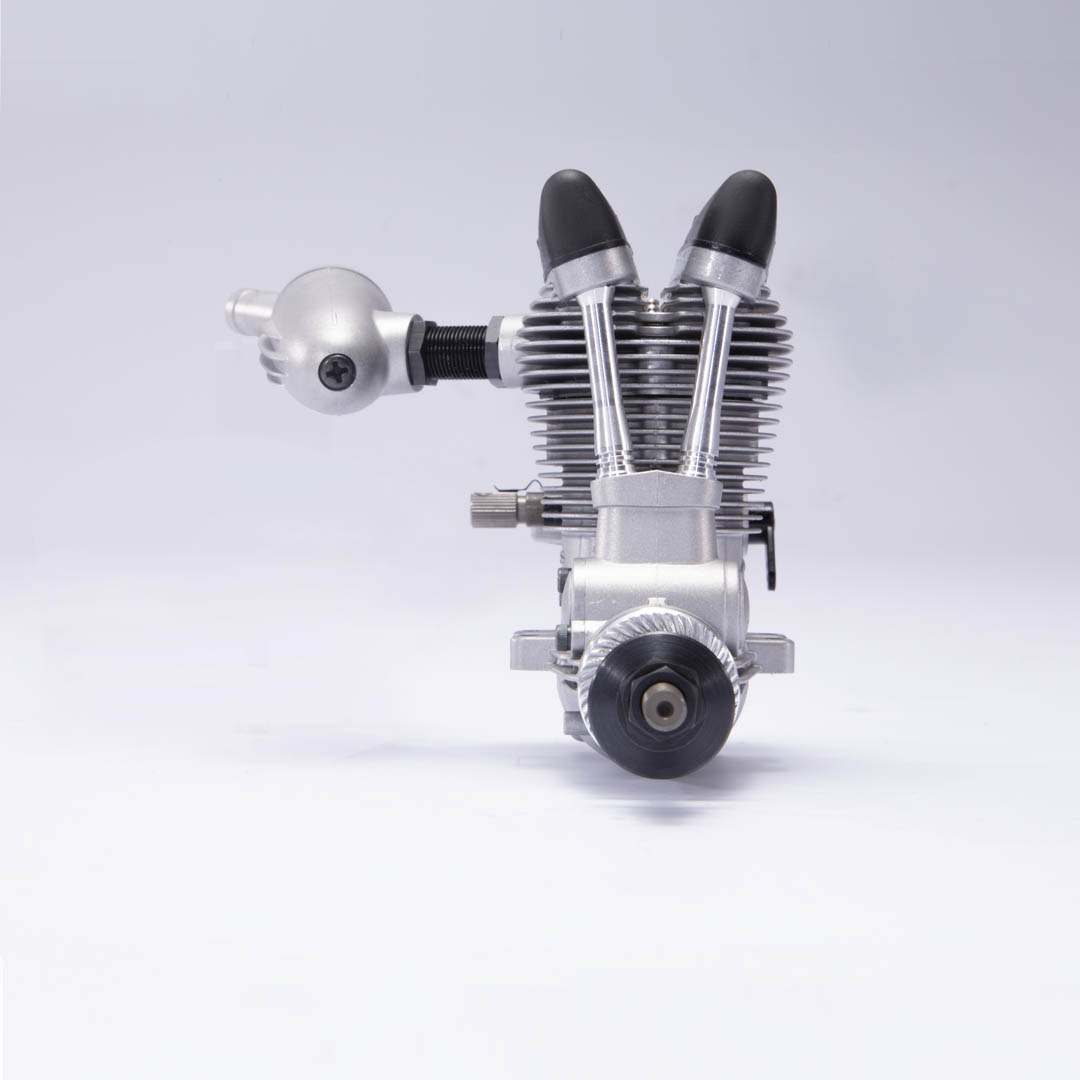

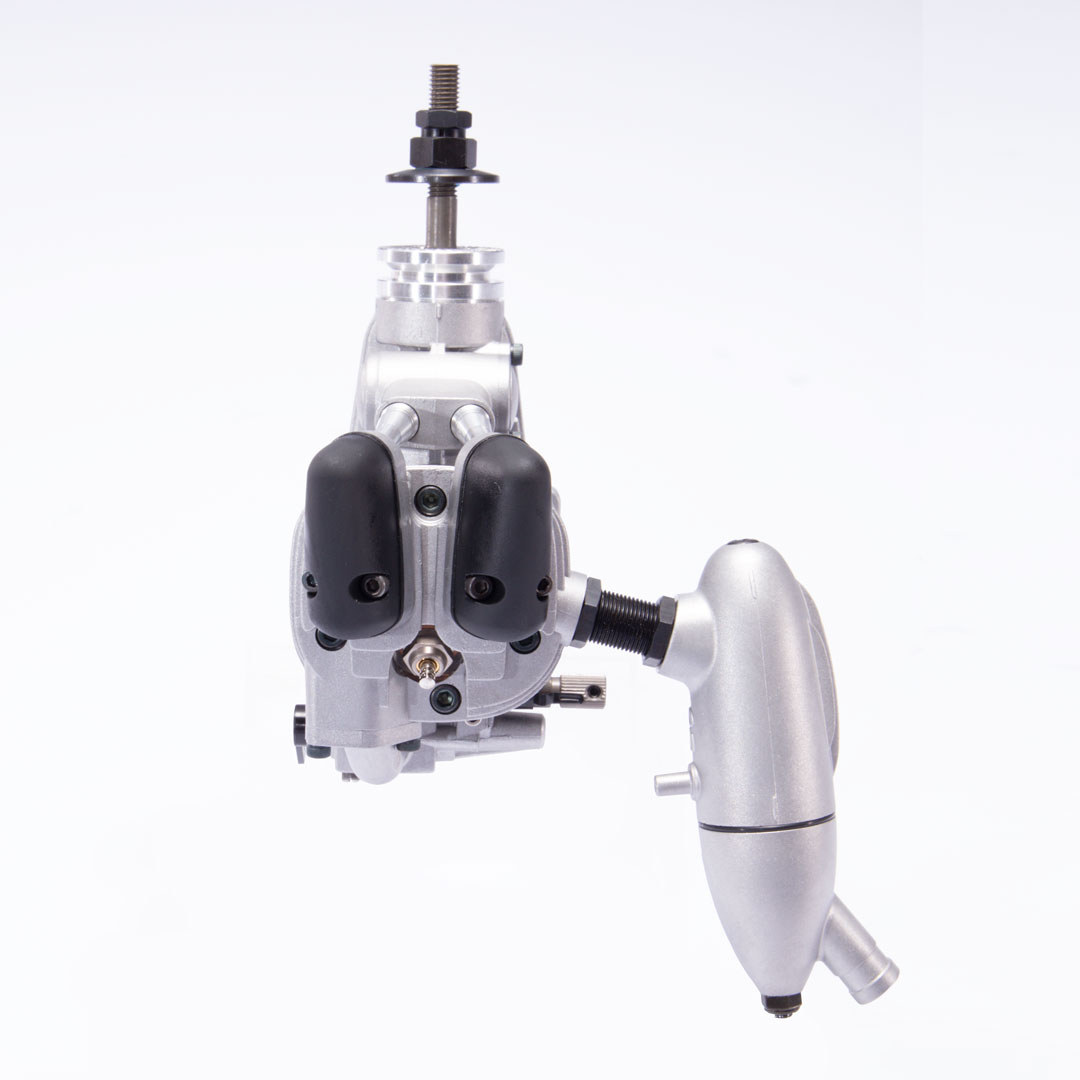

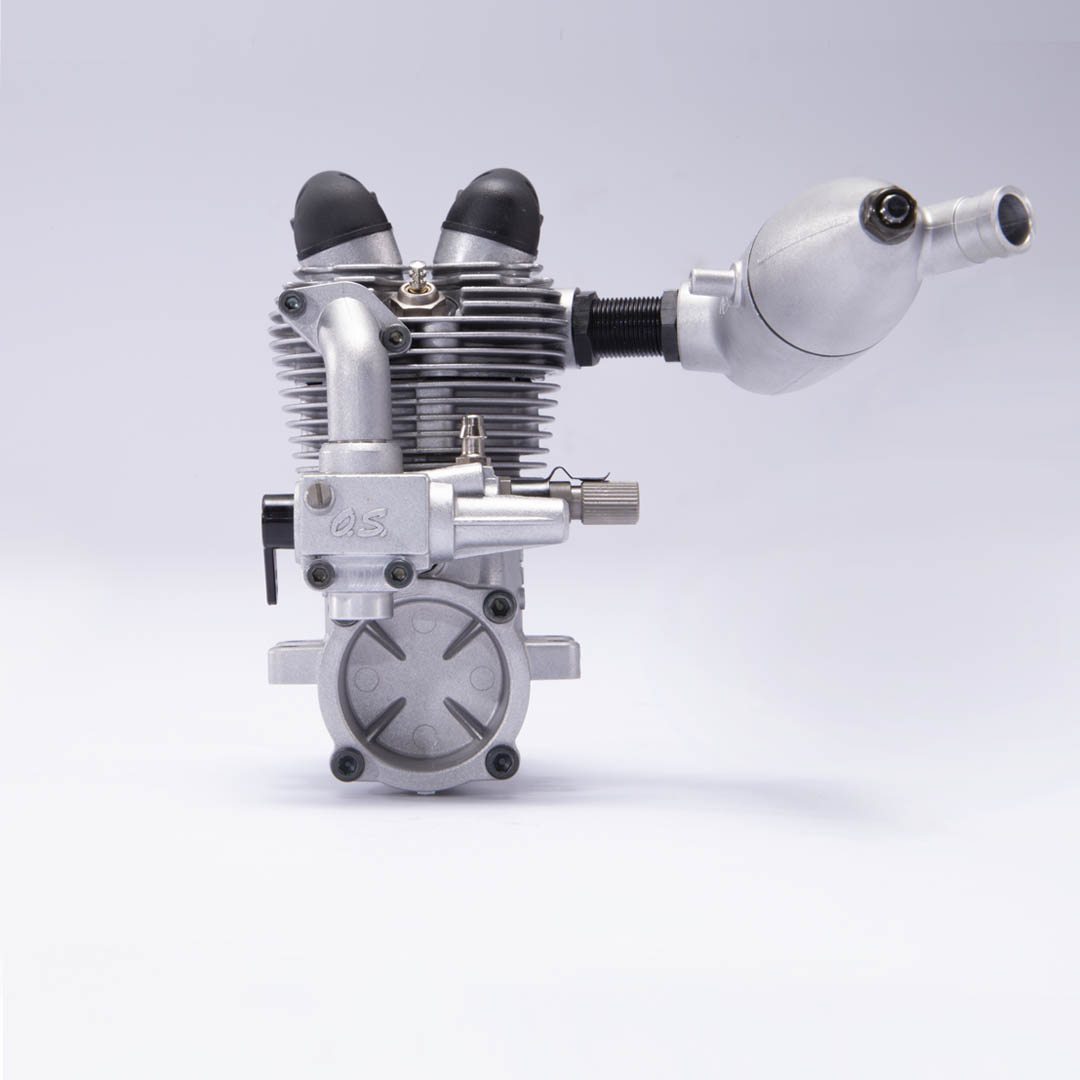

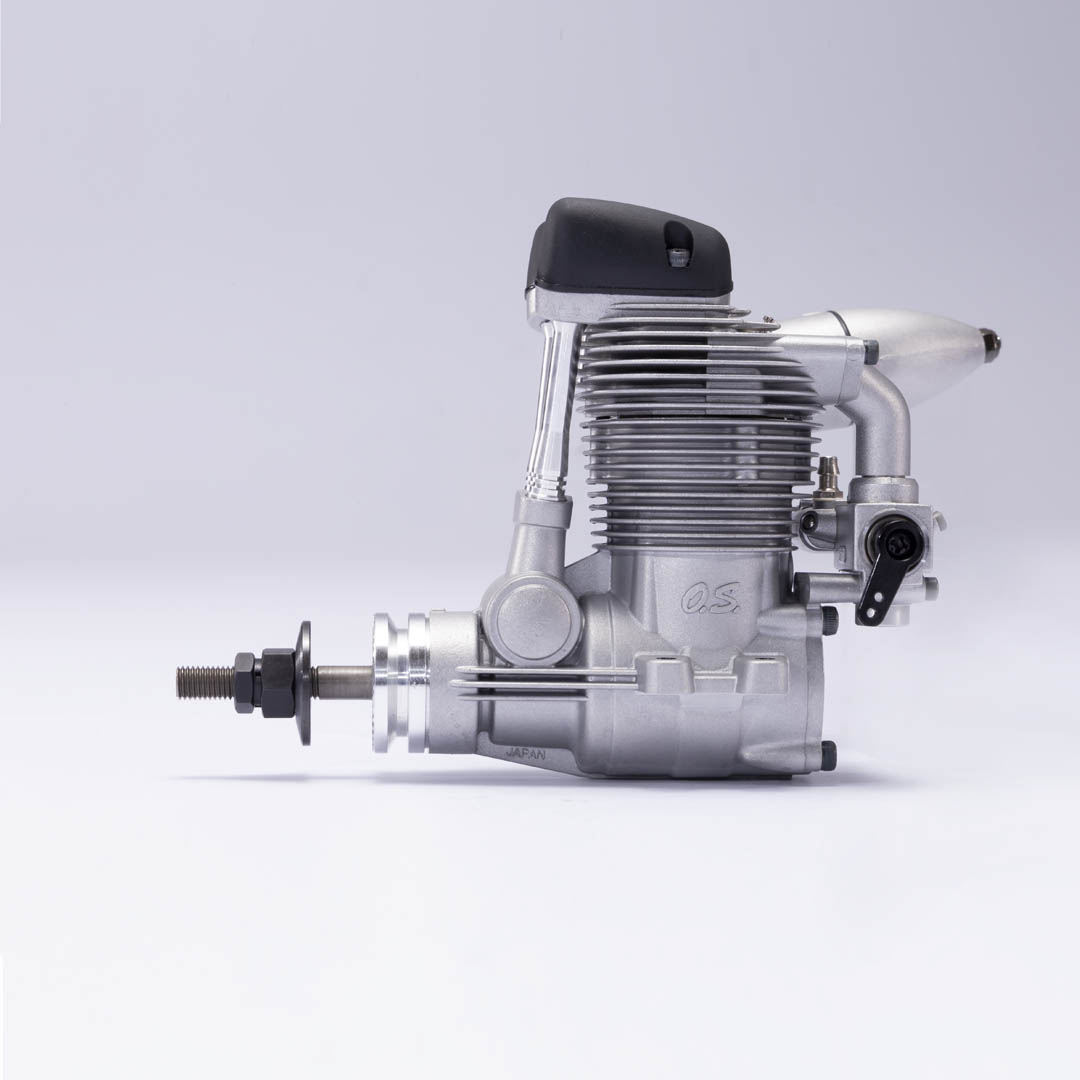

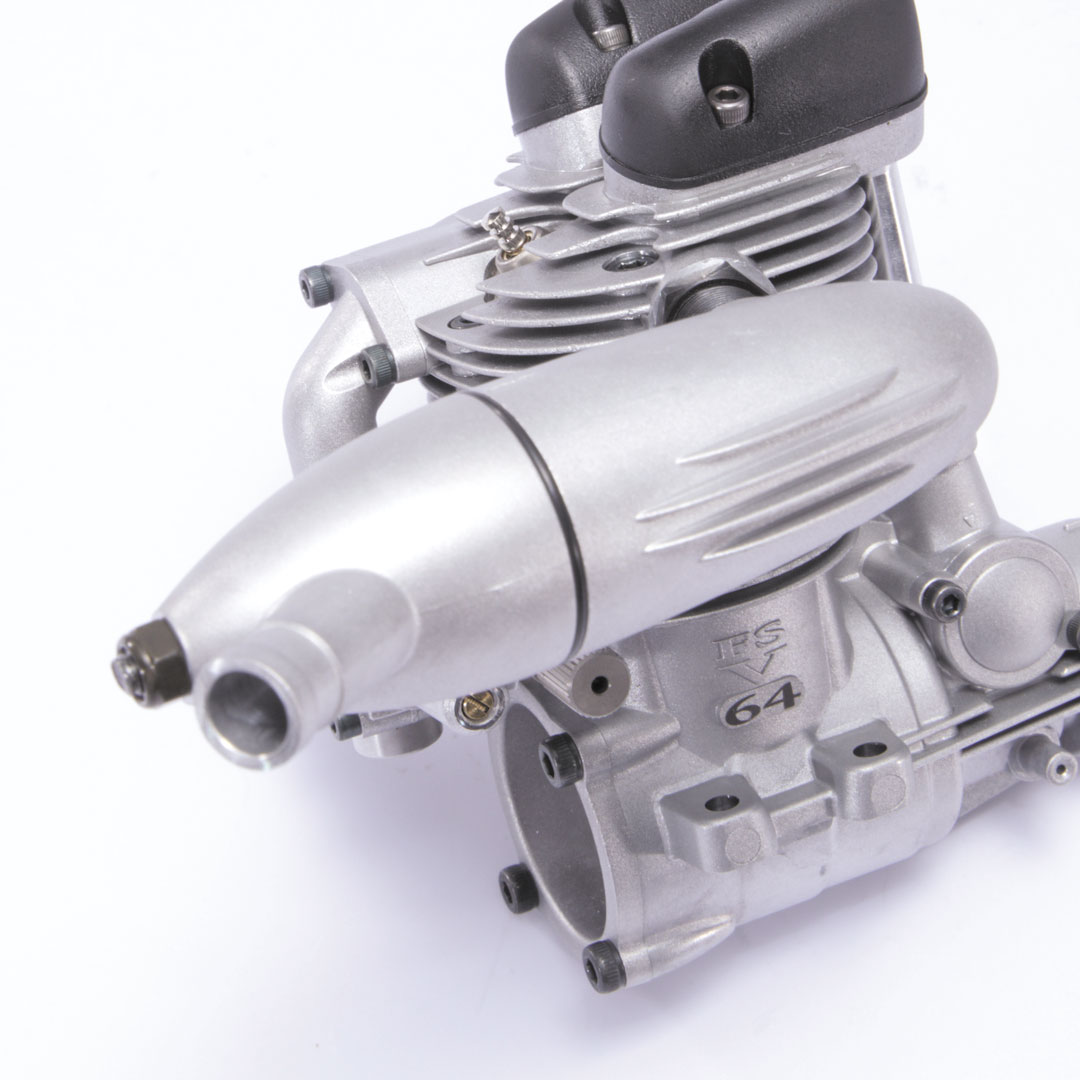

Photo gallery
