2 STOROKE ENGINES FOR HELICOPTER MODEL

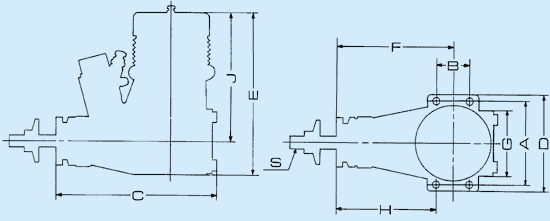

- 寸法表 -

品名	A	B	C	D	E	F	G	H	J	S
MAX-32SX-H RING	38	15	75	45	76	53	30.3	45.5	60.6	UNF1/4-28
MAX-32SX-HX RING	38	15	94.5	45	76	53	30.5	45.5	60.6	"
MAX-32SZ-H RING	38	15	75	45	76.5	53	30.6	45.5	61	"
MAX-50SX-H RING Hyper	44	17.5	85.8	52	92.5	51.6	36	52.3	74	"
MAX-55HZ HYPER	44	17.5	76.6	52	90.9	51.6	36	42.85	72.6	"
MAX-55HZ-R	44	17.5	76.6	52	90.9	51.6	36	42.85	72.6	"
MAX-70SZ-H RING	52	25	82.3	61	99	55.3	42.6	42.8	77.5	UNF5/16-24
MAX-91SZ-H RING	52	25	86.5	61	119.2	56.4	43	43.9	87.4	"
MAX-91SZ-H RING PS Hyper	52	25	97.5	61	119.2	56.4	43	43.9	87.4	"
MAX-91RZ-H RING MAX-91RZ-DH RING	52	25	83.5	61	109	56.4	43	43.9	87.4	"
MAX-91HZ-R	52	25	98	61	102.7	55.4	43	42.9	81.2	"
MAX-91HZ	52	25	92.5	61	102.7	56.4	43	43.9	81.2	"
MAX-91HZ-PS	52	25	98	61	102.7	56.4	43	43.9	81.2	"

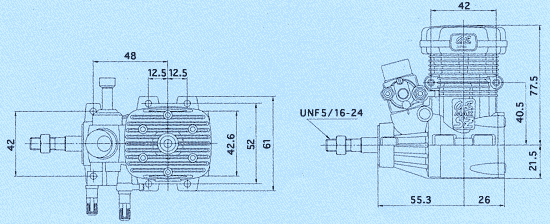

70SZ-H 寸法図
