4 STROKE ENGINES FOR FIXED-WING AIRCRAFT

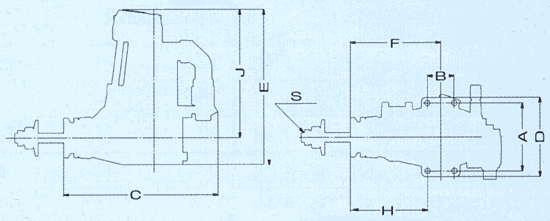

- 寸法表 -

品名
A
B
C
D
E
F
G
H
J
S
FS-30S 36 14 82 44 86.5 48.5 29 40 70 UNF1/4-28
42
17.5
92.5
49
98
57
32.5
48.1
80.5
"
44
17.5
101.5
51
101
59
34
49.3
83.5
"
44
17.5
102.8
51
105.1
60
34
51.3
87.5
"
FSα-56 44 17.5 102.3 51 101.7 59 34 49.3 84 "
FS-70ULTIMATE 45 20 104.8 54 104.6 59.5 35 49.5 86.6 "
50
21
113
59
117.5
66
40
55.5
97
UNF5/16-24
FL-70 45 20 103 54 107.5 59.5 35 49.5 89.5 UNF1/4-28
FSα-72 45 20 103.6 54 108 59.5 36 49.5 90 "
FSα-81 50 21 112 57 117.5 66 40 55.5 97 UNF5/16-24
FSα-81-p 50 21 112 57 117.5 66 40 55.5 97 "
52
25
114.5
60
123
66.5
42.6
54
101
"
52
25
122
60
123
66.5
42.6
54
101
"
FS-95V 52 25 115.7 61 119 66.5 42.6 54 97,5 UNF 5/16-24
FSα-110 52 25 114.5 61 125.4 66.5 42.6 54 103.8 "
FSα-110-P 52 25 120.2 61 125.6 66.5 42.6 54 104 "
FSα-155-P 58 25 127.6 67 138.6 77 47 64.5 114 "
58
25
134
67
138.5
77
47
64.5
115
"
58
25
134.5
67
139.5
77
47
64.5
116
"
58
25
145.5
67
145
76.5
48
63.5
120
"
58
25
162
67
145
77
48
64.5
119
"
58
25
136
67
145
77
48
64.5
119
"





　
