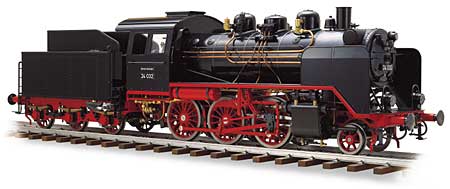

The BR24 was designed
for passager service by German State Railway(DRG), Total 95 locomotives
in the BR24 series were manufactured between 1926 and 1938. As its nickname"Steppen
pferede" suggestes,the BR24 played an important role in various branch
line. O.S. can dliver this beautiful BR24 ready to run or as a fully
machined kit. No longer is it necessary to possess an expensively equipped
workshop and to spend years building a steam locomotive. Only a few
simple hand tools are needed to produce superb, model.
|
|
Options
|
|
| Donkey pump | Battery box |
| Injector, Generattor | Low-note whistle |
| Propane burner | Propane burner |
| Dressup parts | Hand brake(including Seat and Foot step) |
| Specifications |
|
SCALE
|
1/11.3 |
WATER FEED
|
|
|
GAUGE
|
5"(127mm) |
AXLE DRIVEN DOUBLE ACTING PUMP
|
BORE:14.5mm STROKE:20mm |
|
MINIMUM RADIUS
|
5m | ||
|
DRIVING WHEELS
|
DIAMETER 133mm |
HAND PUMP
|
BORE:14.0mm STROKE:35mm |
|
CYLINDERS
|
INJECTOR(OPTION)
|
550cc/min | |
|
BORE
|
42mm |
DONKY PUMP(OPTION)
|
BORE:10.0mm STROKE:20mm |
|
STROKE
|
58mm |
LUBRICATOR
|
WAKEFIELD TYPE MECHANICAL LUBRICATOR |
| OIL TANK CAPACITY 26cc | |||
|
PISTON VALVES
|
BRAKES(OPTION)
|
2STEAM BRAKE CYLINDER | |
|
BORE
|
BORE:20mm | ||
|
TRAVEL
|
17mm | HAND BRAKE | |
|
FULL GER CUT OFF
|
83% |
MAINAXLES BOX
|
NEEDLE BEARING INCLUDED |
|
STEAM LAP
|
3.5mm |
CONNECTING ROD
|
NEEDLE BEARING INCLUDED |
|
TENDER WHEEL
|
BALL BEARING INCLUDED | ||
|
PORT OPENING
|
5mm |
WEIGHT
|
ENGINE:57kg |
|
VALVE GEARS
|
WALSCHAERT'S | TENDER:23kg | |
|
BOILER
|
TENDER WATER CAPACITY
|
8000cc | |
|
COPPER ALL SILVER SOLDERED
|
SIZE
|
||
|
BARREL DIAMETER
|
140mm |
LENGTH
|
ENGINE & TENDER:1528mm |
|
HYDRAULIC TEST PRESSURE
|
1.5MPa | ENGINE:970mm | |
|
WARKING PRESSURE
|
0.55MPa | TENDER:600mm | |
|
WATER VALUME
|
4000cc |
HEIGHT
|
381mm |
|
FLUES
|
20mm O.D. x 17.6mm I.D. 3pcs |
WIDTH
|
285mm |
|
TUBES
|
12mm O.D. x 10.4mm I.D. 20pcs |
WHEEL BASES
|
ENGINE:316mm |
|
SAFTY VALVE
|
TWIN POP TYPE SAFETY VALVES | ||
|
FUEL
|
COAL OR L.P.G | TENDER:36mm | |
|
REGULATOR
|
SCREW TYPE | ||
|
SUPERHEATER
|
OUTER DIA 6mm STAINLESS STEEL TUBES 3pcs | ||
|
|
