MARINE ENGINES

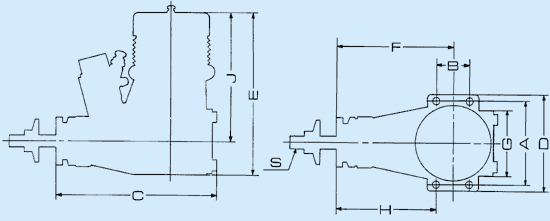

- Dimensions(mm) -

Items	A	B	C	D	E	F	G	H	J	S
MAX-15CV-MX	31.4	11	-	39	65	-	25	-	52	M5
MAX-18CV-RM MAX-18CV-RMX	31.4	11	-	39	63.3	-	25	-	50.5	"
MAX-21RG-M MAX-21RG-MX	37	21	-	45	74.7	-	29.6	-	59.7	UNF1/4-28
MAX-21VZ-M	37	21	-	45	89.1	-	25	-	73.8	"
MAX-21XZ-M	37	21	65.6	45	81.75	44	31.6	33.5	66.15	"
MAX-32SX-MX	38	15	-	45	82.5	-	-	-	58	"
MAX-46VX-M	45	21	-	53	87	-	37	-	68	"
MAX-81VR-M ABC	52	25	-	61	105.5	-	43.4	-	84.1	UNF5/16-24

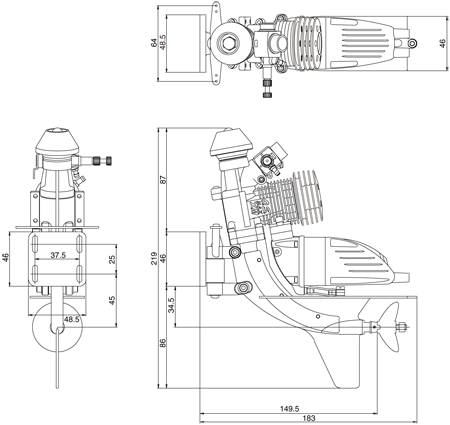

Dimensions (mm) MAX-21XM Ver.II
