Specifications
MAX-37SZ-H RING
Output 1.4ps/18,000r.p.m.
Practical r.p.m.Range 2,000-21,000r.p.m.
Displacement 0.370cu.in
Bore 0.806in.
Stroke 0.725in.
Weight 10.34oz.
Little Dynamite !

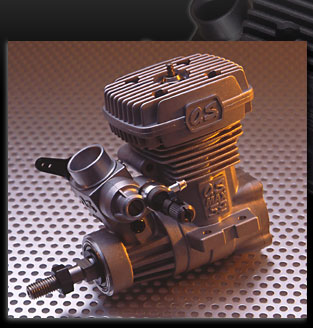

MAX-37SZ-H RING
Absolute Power and Radical Design

These days, radical 3-D flight is the buzzword. This helicopter engine gives you the power you need. The need for power is highest in 30 class small models where enthusiasts want a small, high-power engine. Now, O.S. offers you the 37SZ-H - a new, compact engine in the SZ series ? designed especially for helicopters. The all-new 37SZ-H engine is fully compatible ? both with regard to mounting hole and muffler position ? to the popular O.S.32SX-H and can therefore be mounted in any of the existing 30 class helicopters. To achieve the low vibration required for a helicopter engine, a good balance has been struck between both the higher r.p.m. for aerobatics and lower r.p.m. for stable hovering which results in smooth power across the entire r.p.m. range. Thanks to a specially designed 20M carburetor, this power can be obtained right from idle, through hovering or during stunning 3-D flights. The 37SZ-H almost exceeds the limits of a 30 class helicopter. You must experience this performance for yourself.



The special design 20M carburettor delivers stable power through the entire r.p.m. range and in any attitude.


Thanks to exhaustive trials with intake/exhaust passage design, its power defies its small scale.


For easier access, idle adjustments can be made from the same direction as that of the main needle.
